WORKTABLE-TYPE DUST COLLECTORS
DDT Series

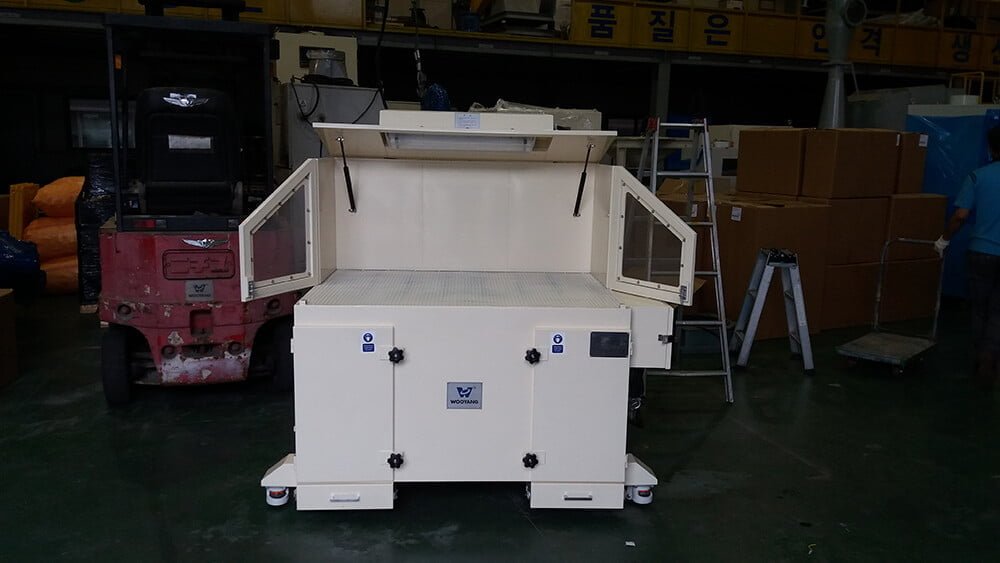

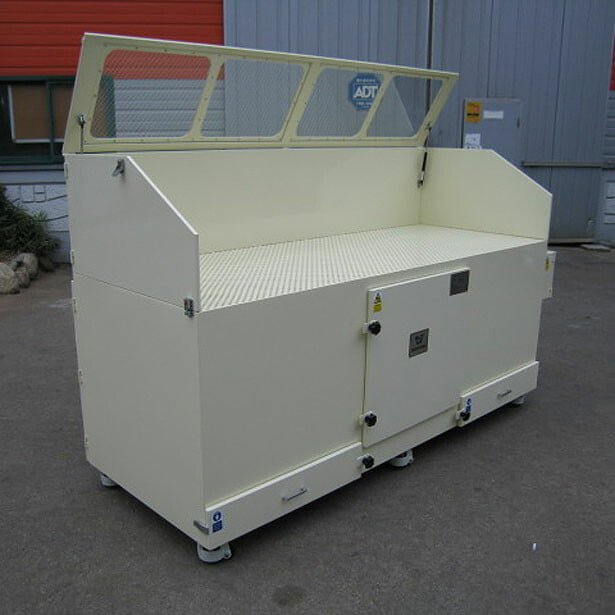

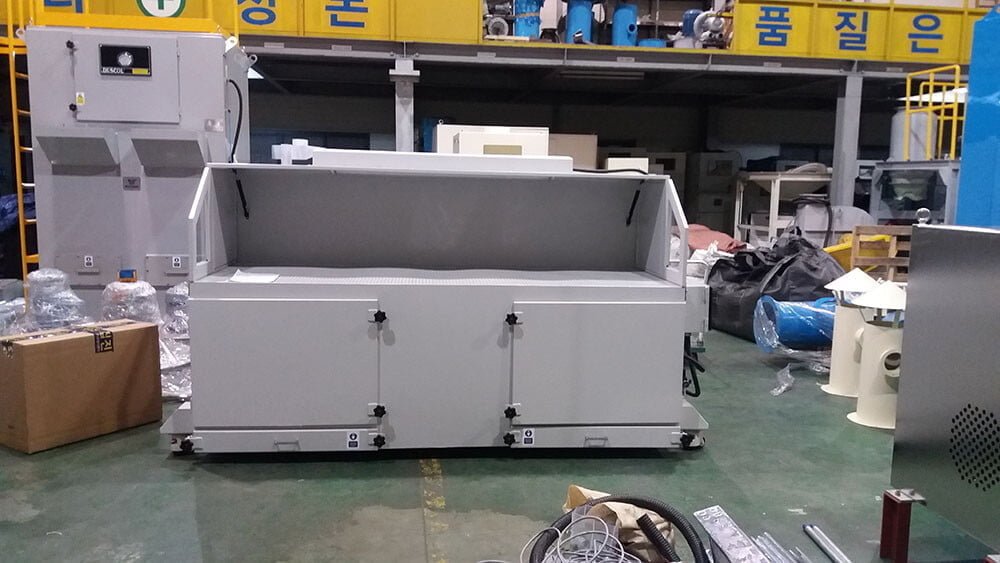

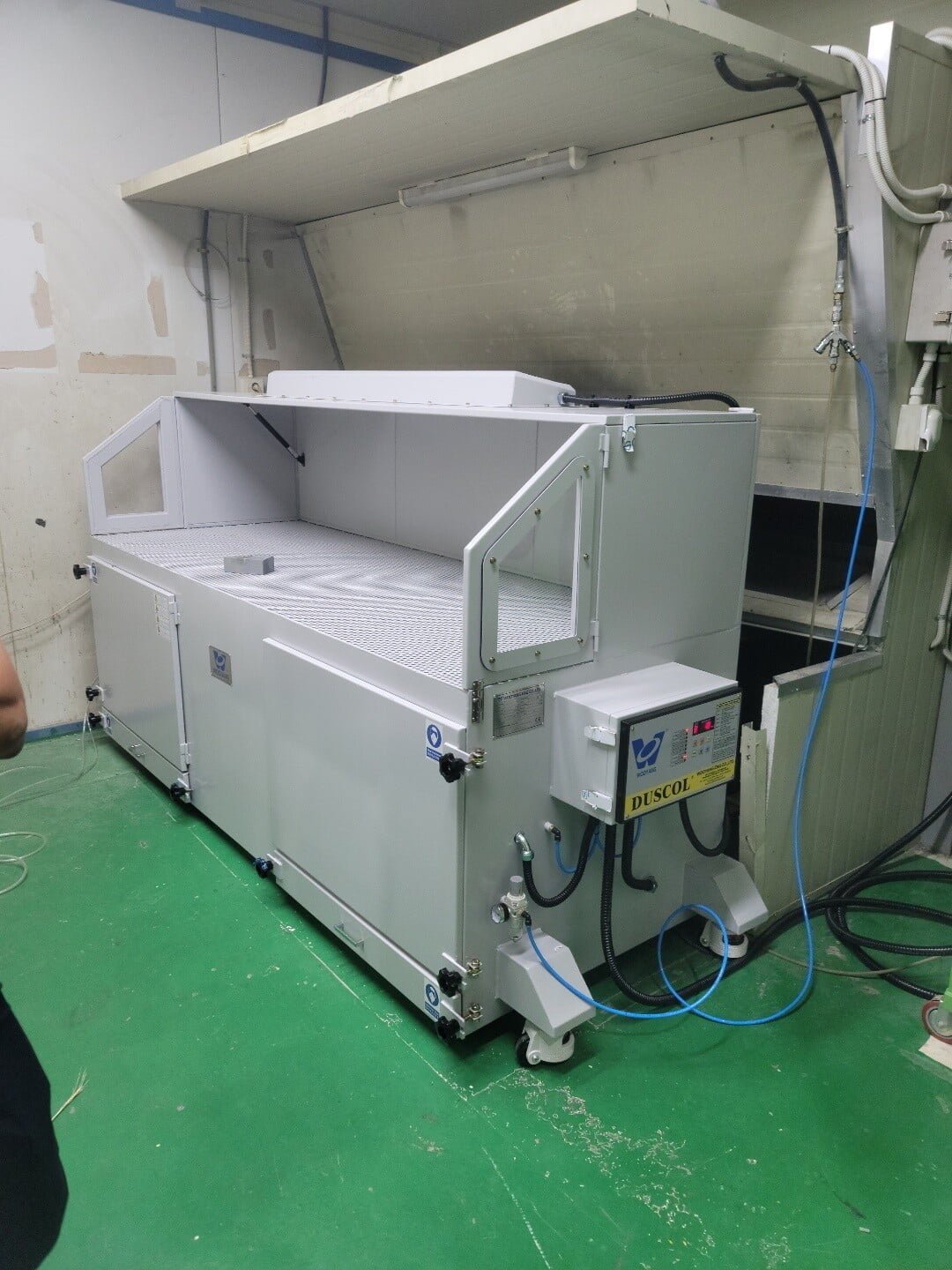

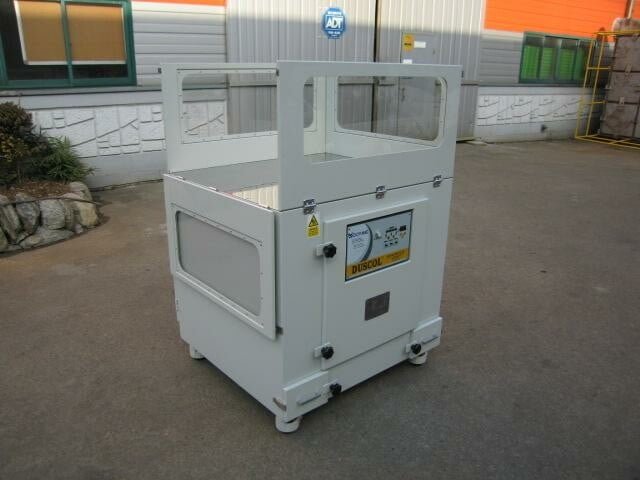

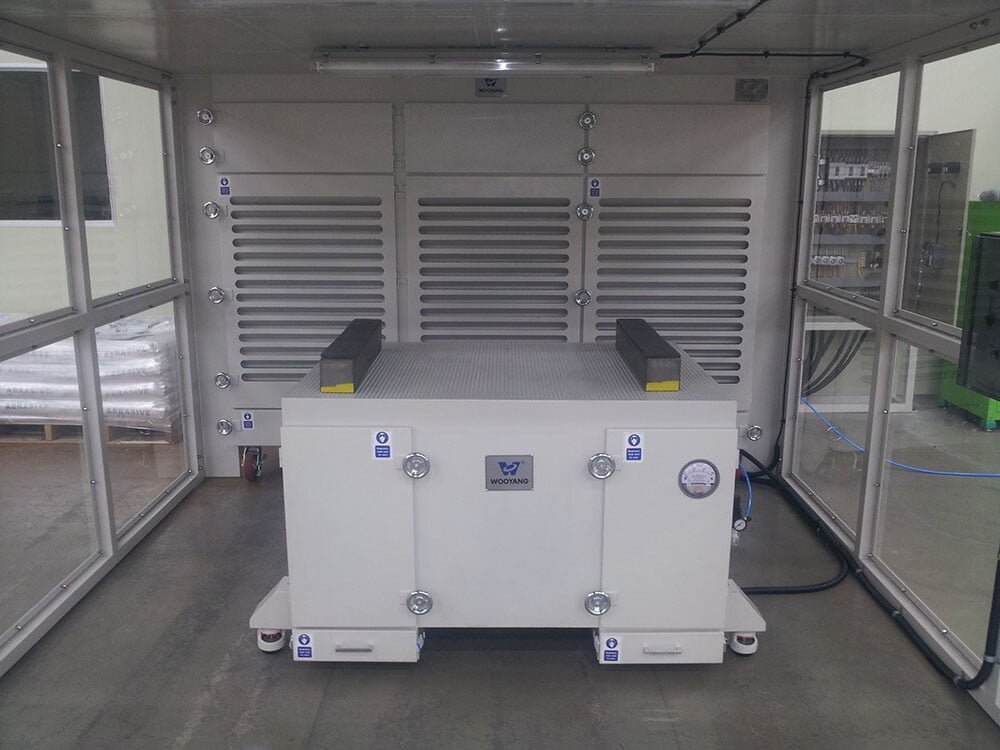

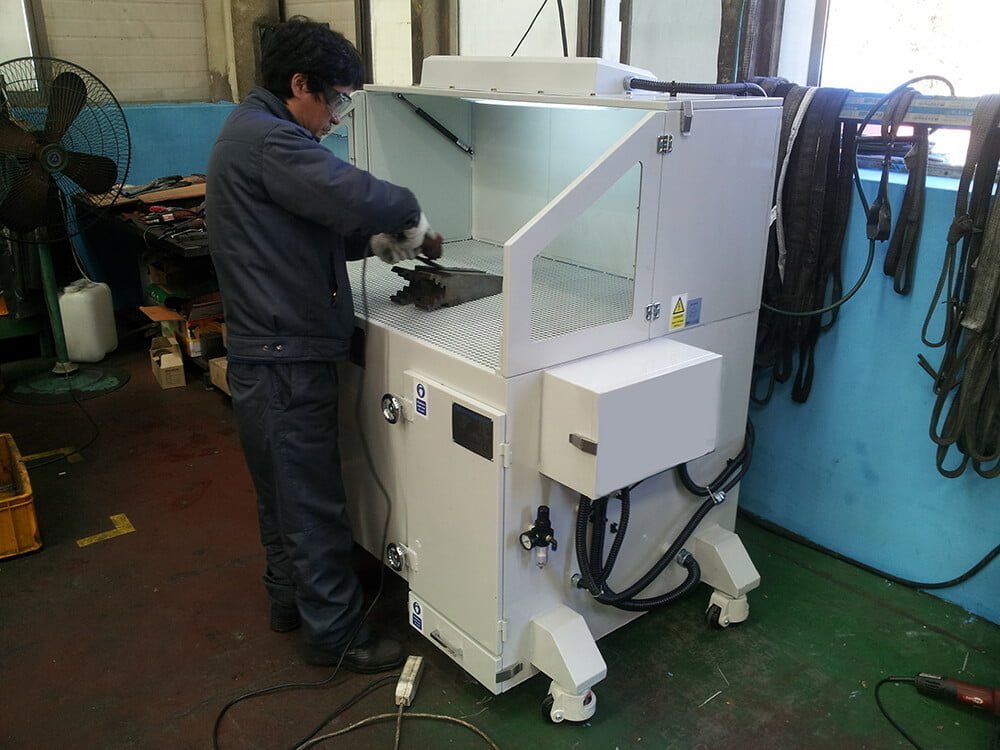

As an integrated form of a worktable and a dry dust collector, this product instantly collects dust towards the bottom of the worktable and prevents dust spreading.
APPLICATION
Useful in industrial processes which produce a lot of fine dust.
Powder feeding, Grinding, Parts machining, Toner job, Cutting, Sanding, Surface treatment, Polishing, Grinding, etc.
FEATURES
- Able to install in a narrow place through the integration of a worktable and a dust collector, ensuring great space utilization.
- Easy to install without the hood and duct and move around conveniently with wheels.
- Prevents dust flying and spreading by instantly sucking dust being generated during powerful turbo motor operations towards the bottom of the worktable. “
- Able to prevent dust spreading, using worktable partitions (top, both sides) and process bulky items by opening them.
- Cleans a filter by spraying high-pressure air through an air pulse system and maximizes filtering efficiency.
- Able to operate and manage in a convenient fashion, using a digital control panel.
- Ensures powerful suction, using a high-efficiency turbo fan.
- Great space utilization in compact design; easy to move with wheels (indoor types).
- Stops the operation automatically when needed to check or change a filter and notifies a warning by buzzer.
- Easy maintenance with consumable parts at the front of the product.
- Keeps dust collection highly efficient through automatic filter cleaning (by air pulse system) after operation.
- Great filtering efficiency, using a filter with a large filtering area and high abrasion and tensile strength in cartridge form.
- Able to handle the dust collected in a dust box in a safe and convenient manner without secondary contamination.
- Easy filter maintenance, using a differential pressure gauge.
- We provide customized products suitable for your work process.
SPECIFICATION
- Power : 220V, 380V, 440V / 3Ø / 50Hz, 60Hz
- The specifications are subject to change without prior notice for product improvement.
- Above specifications are the specifications of our standard models. We customize them to meet our clients’ needs.
CAUTION
- This product is not suitable for wet or oily dust.
- To collect special dust (e.g., high-temperature dust, spark, explosive dust/gas, etc.), please contact us for a consultation before placing an order.
- An air compressor should be connected to use the filter cleaning system (air pulse system).
