Air Pollution Prevention Facilities

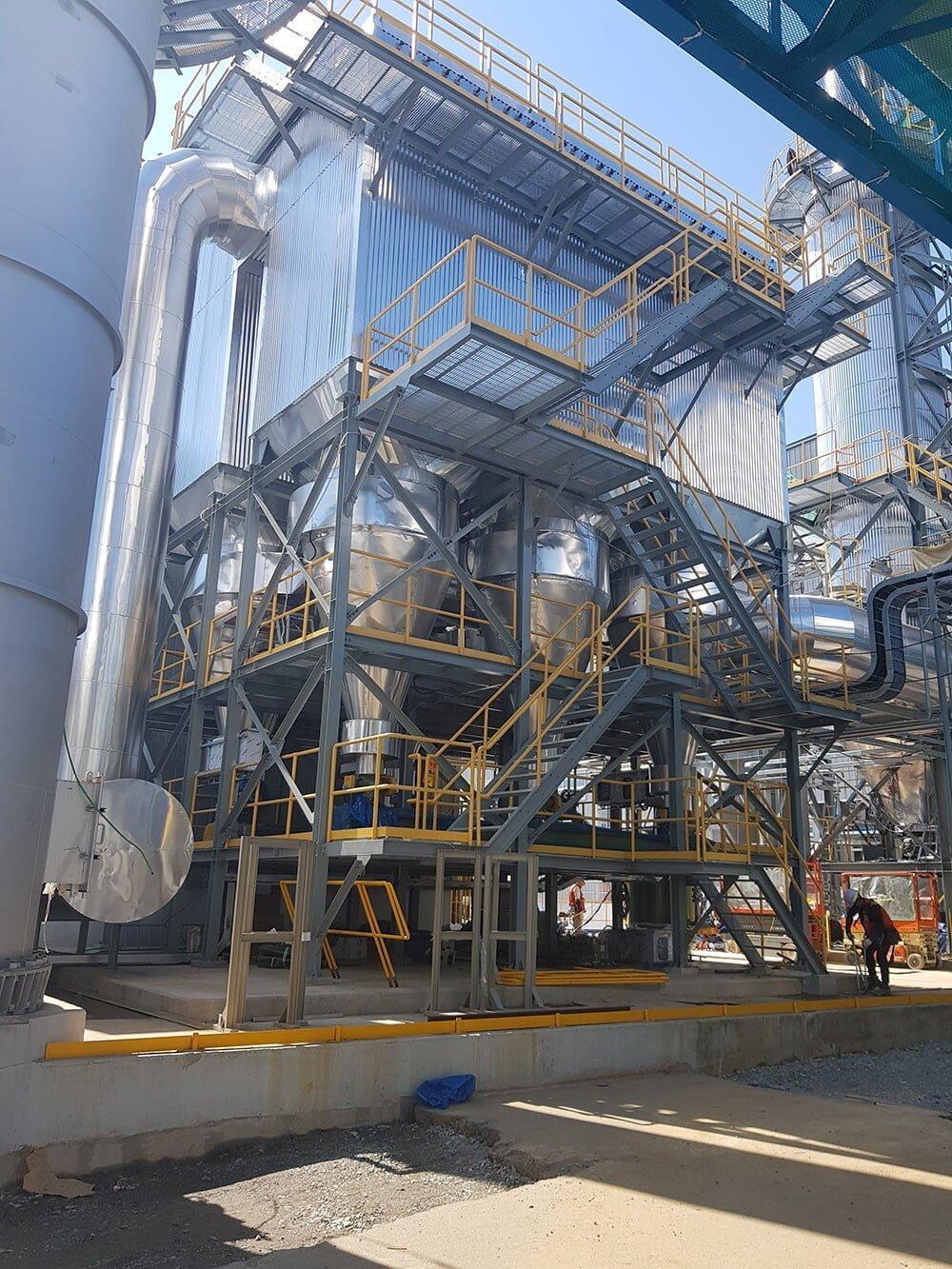

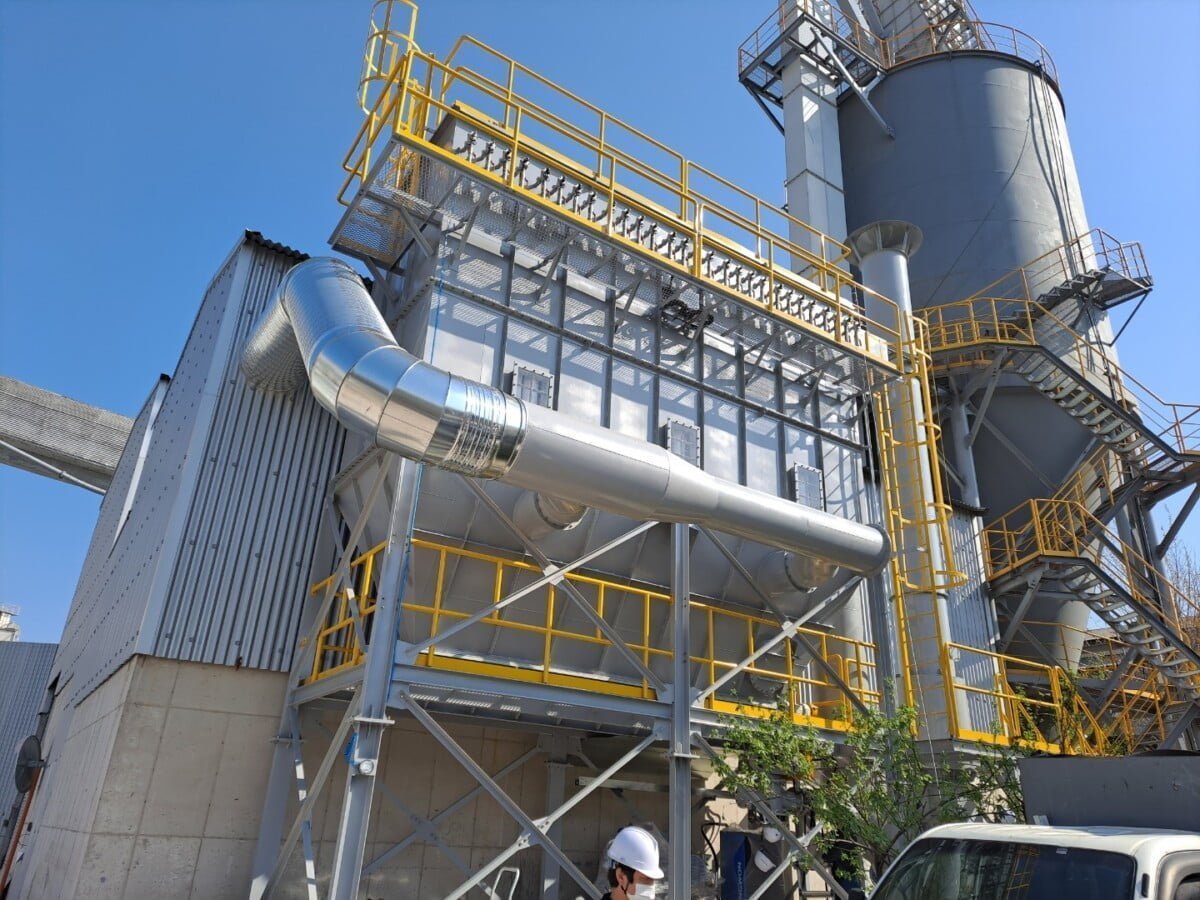

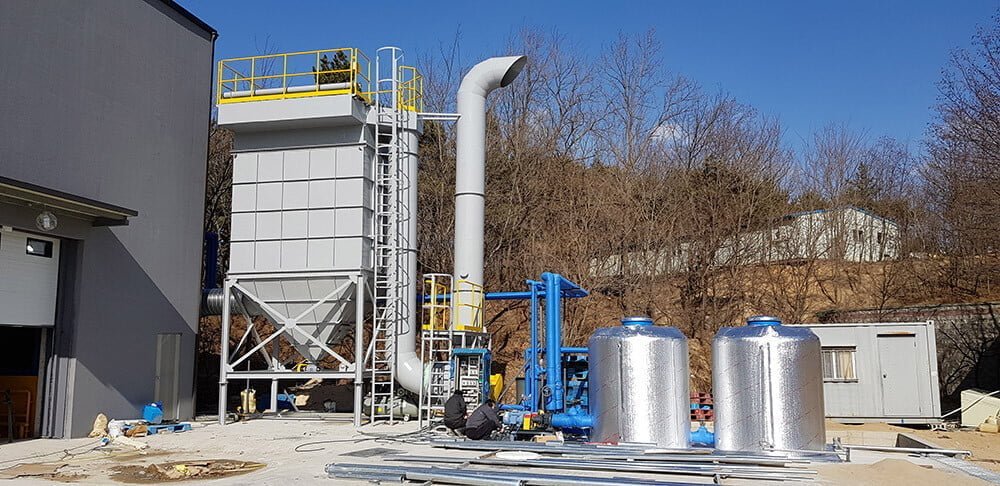

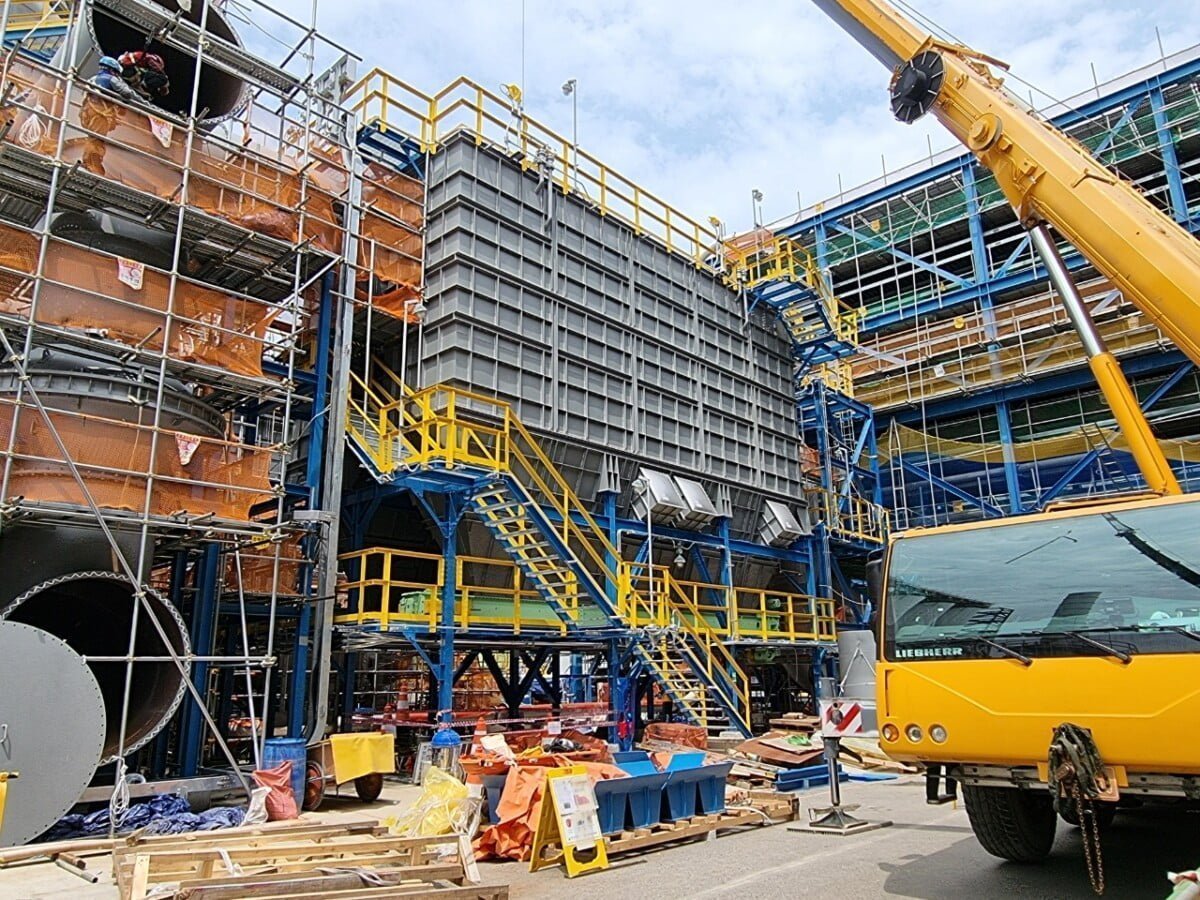

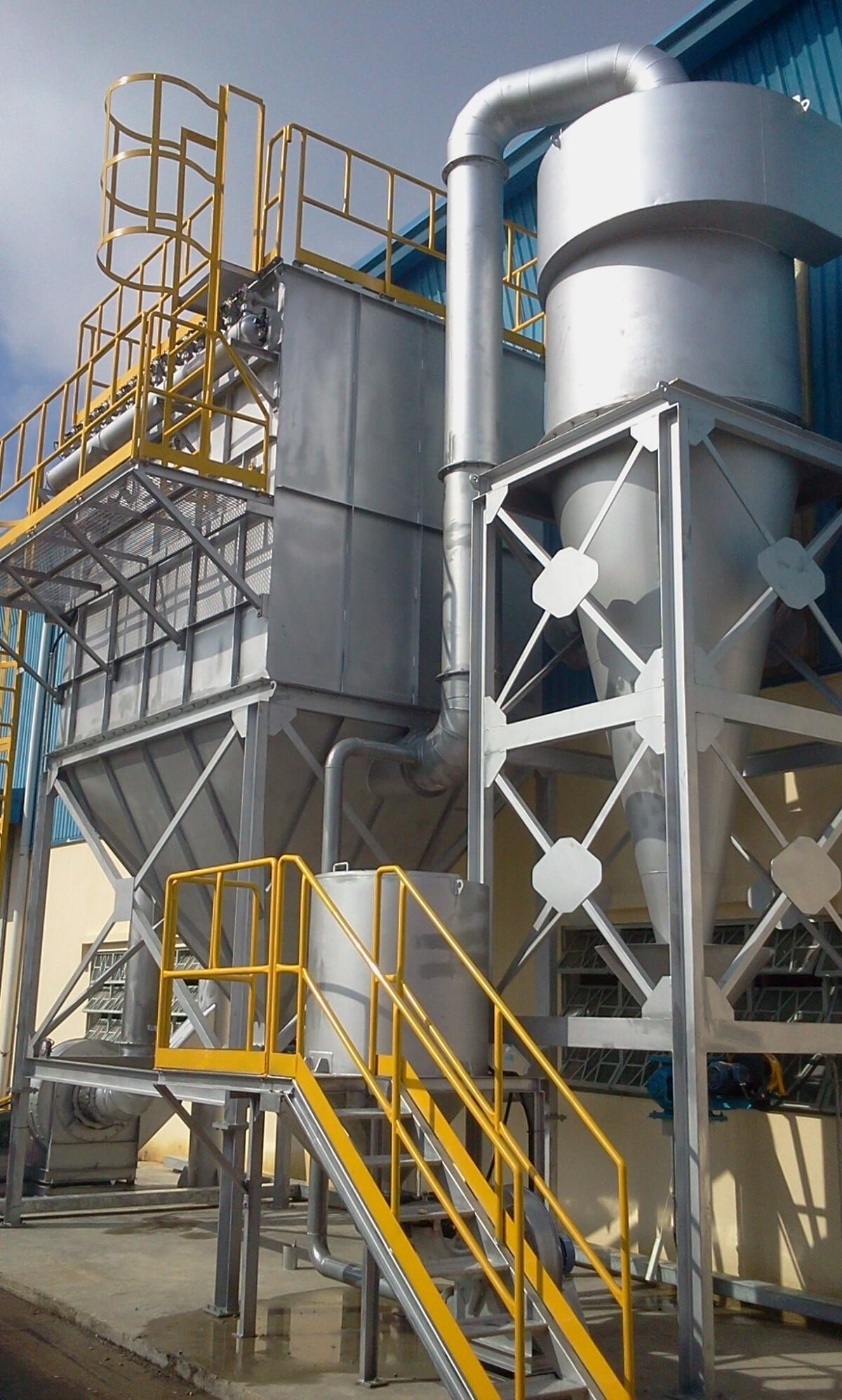

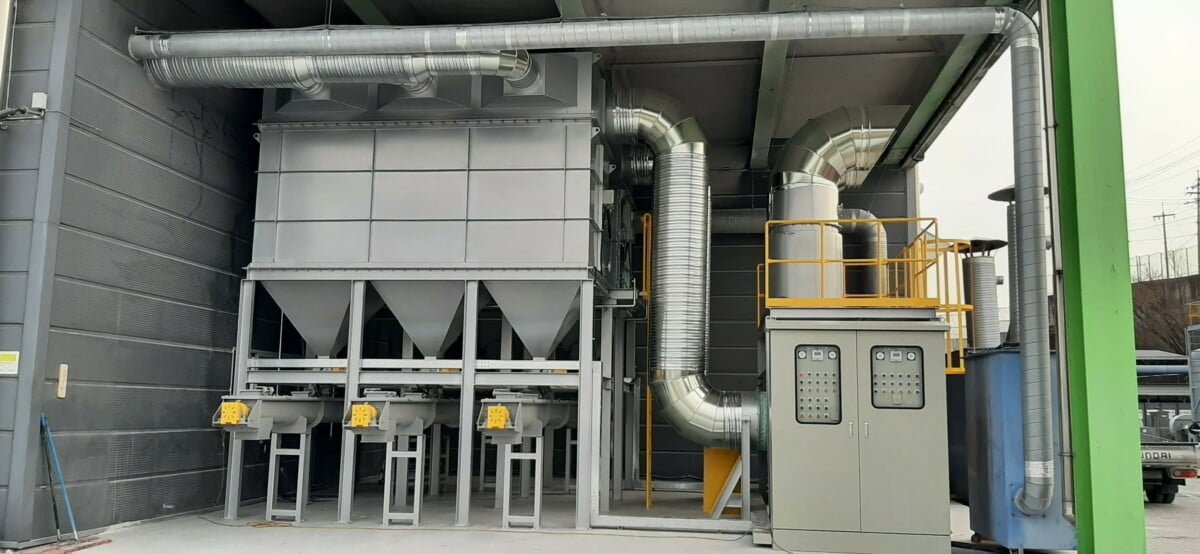

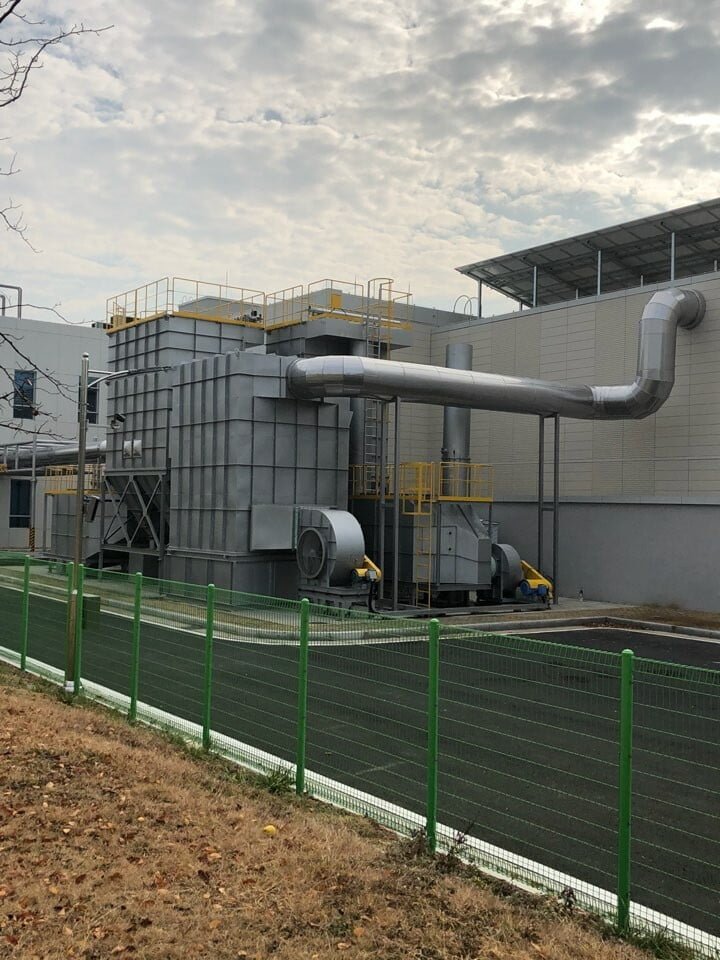

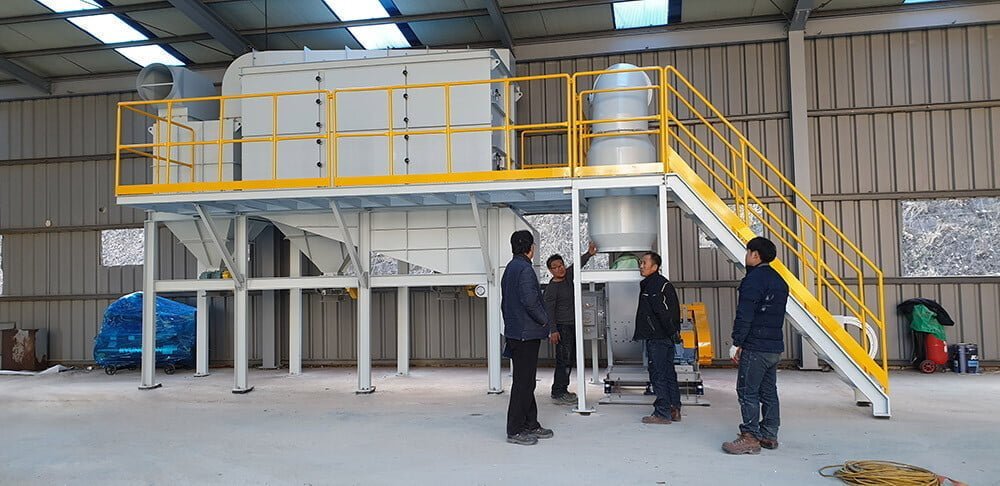

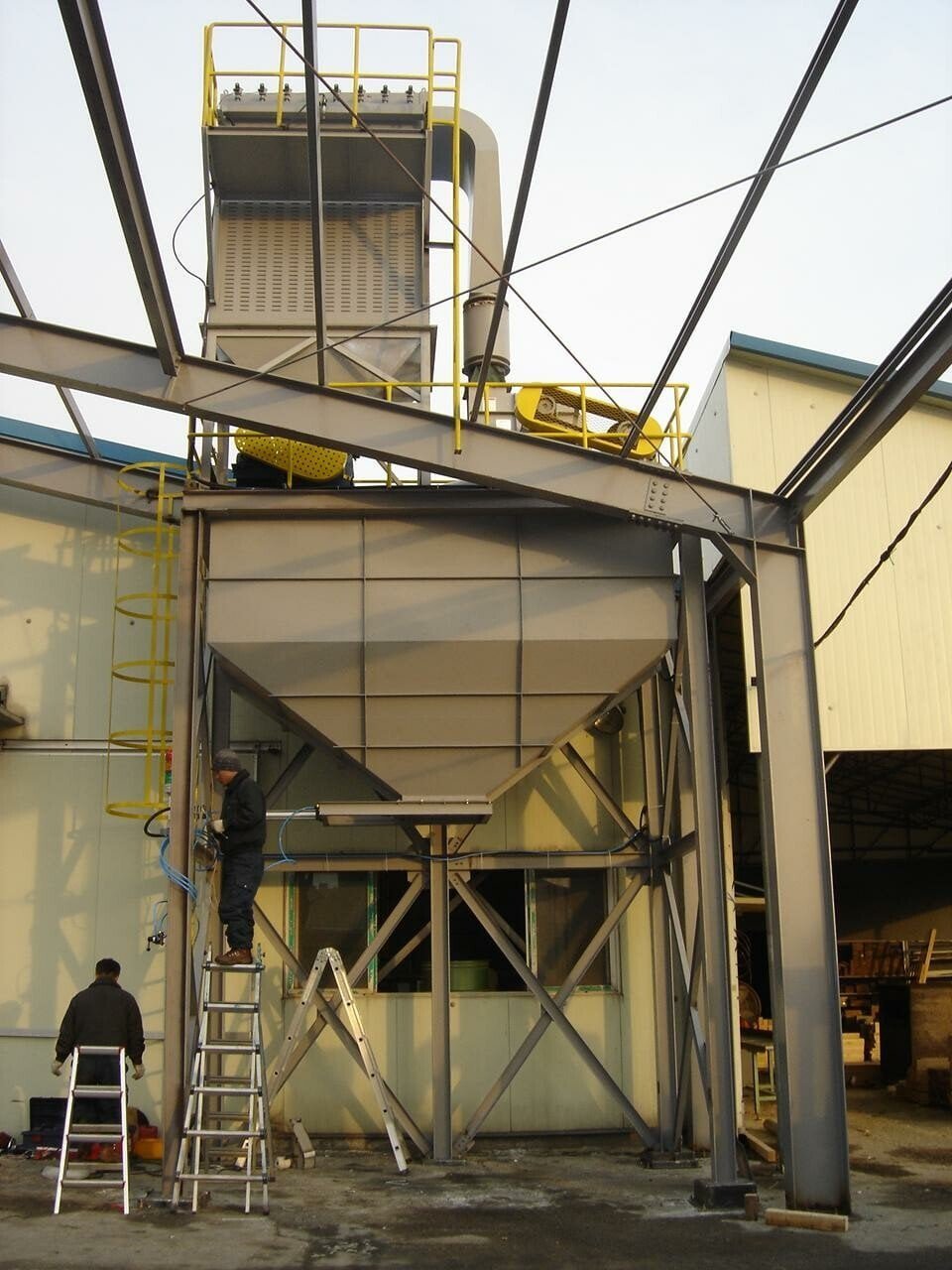

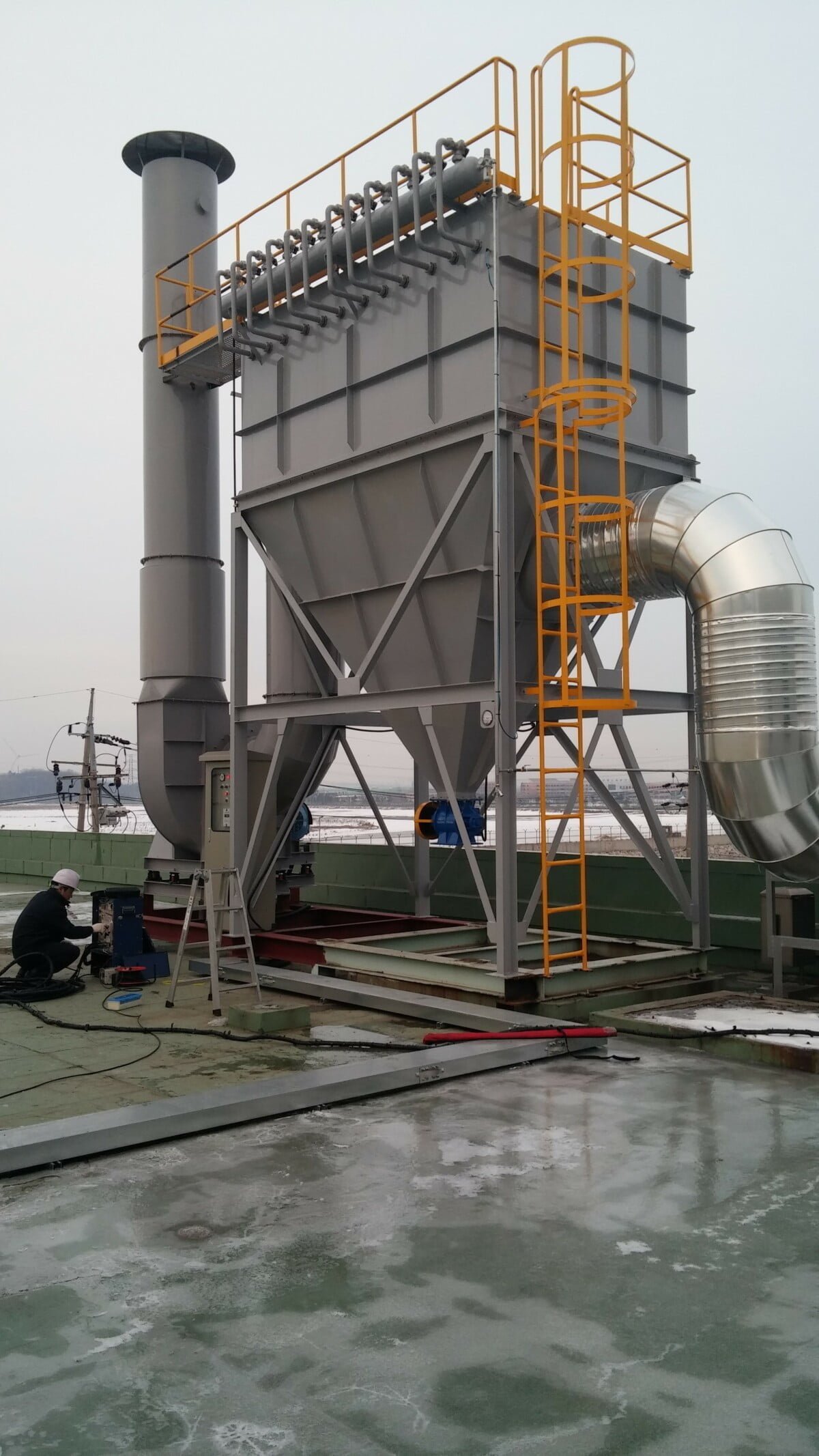

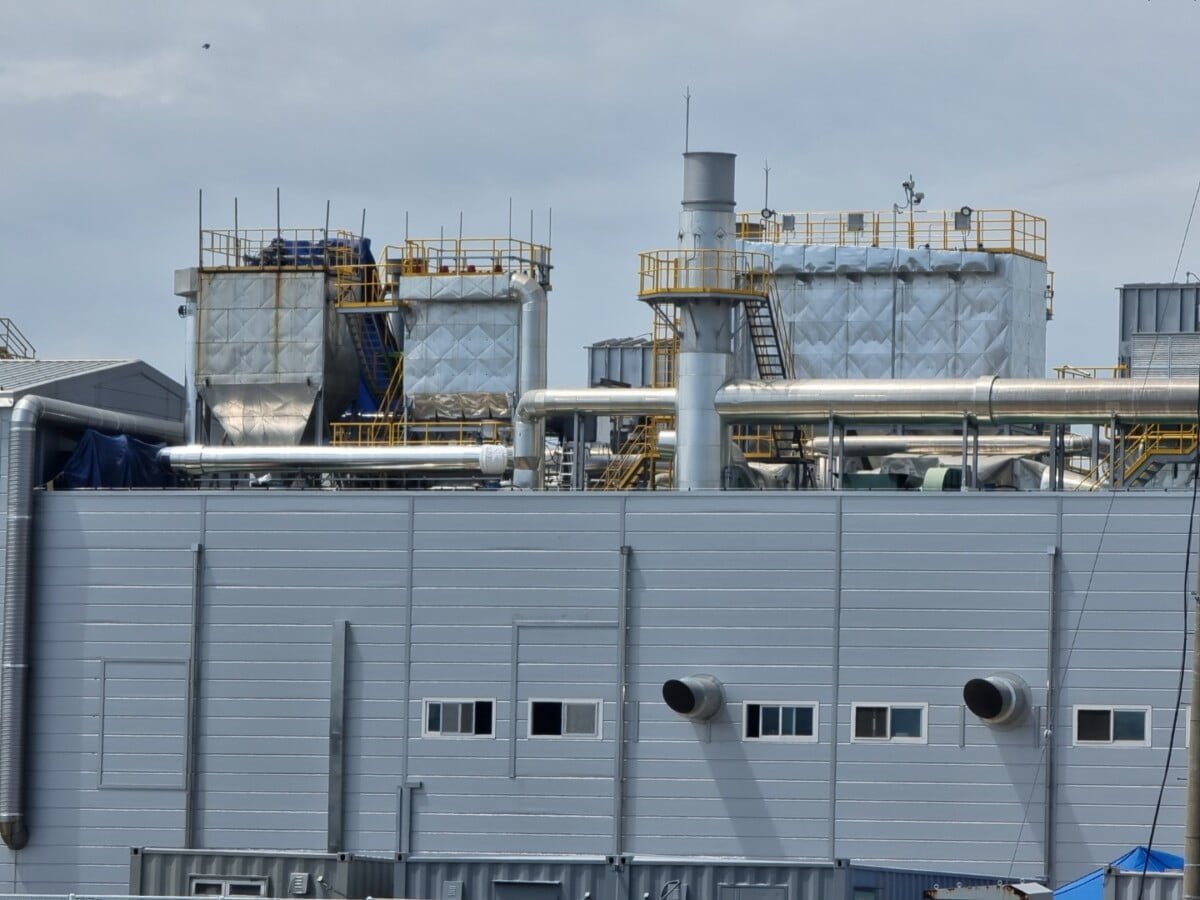

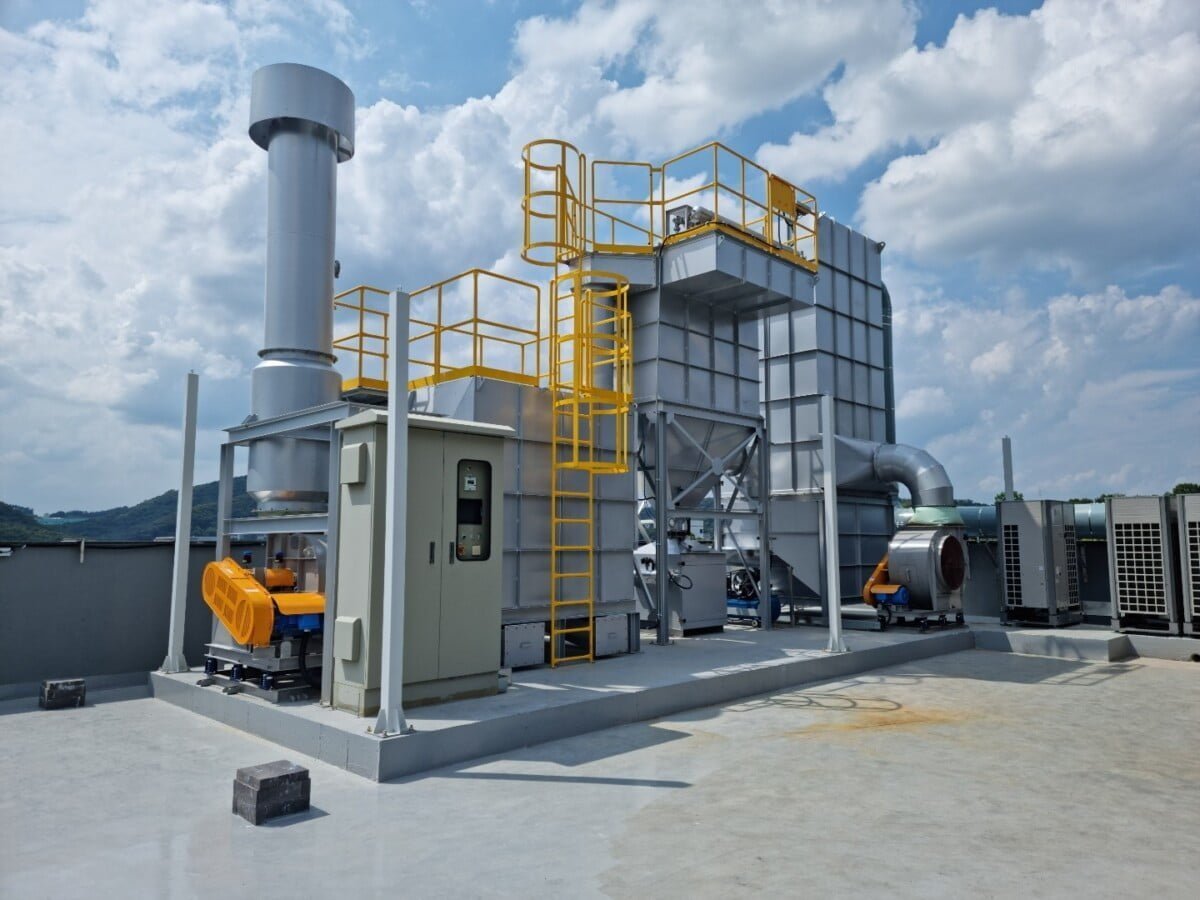

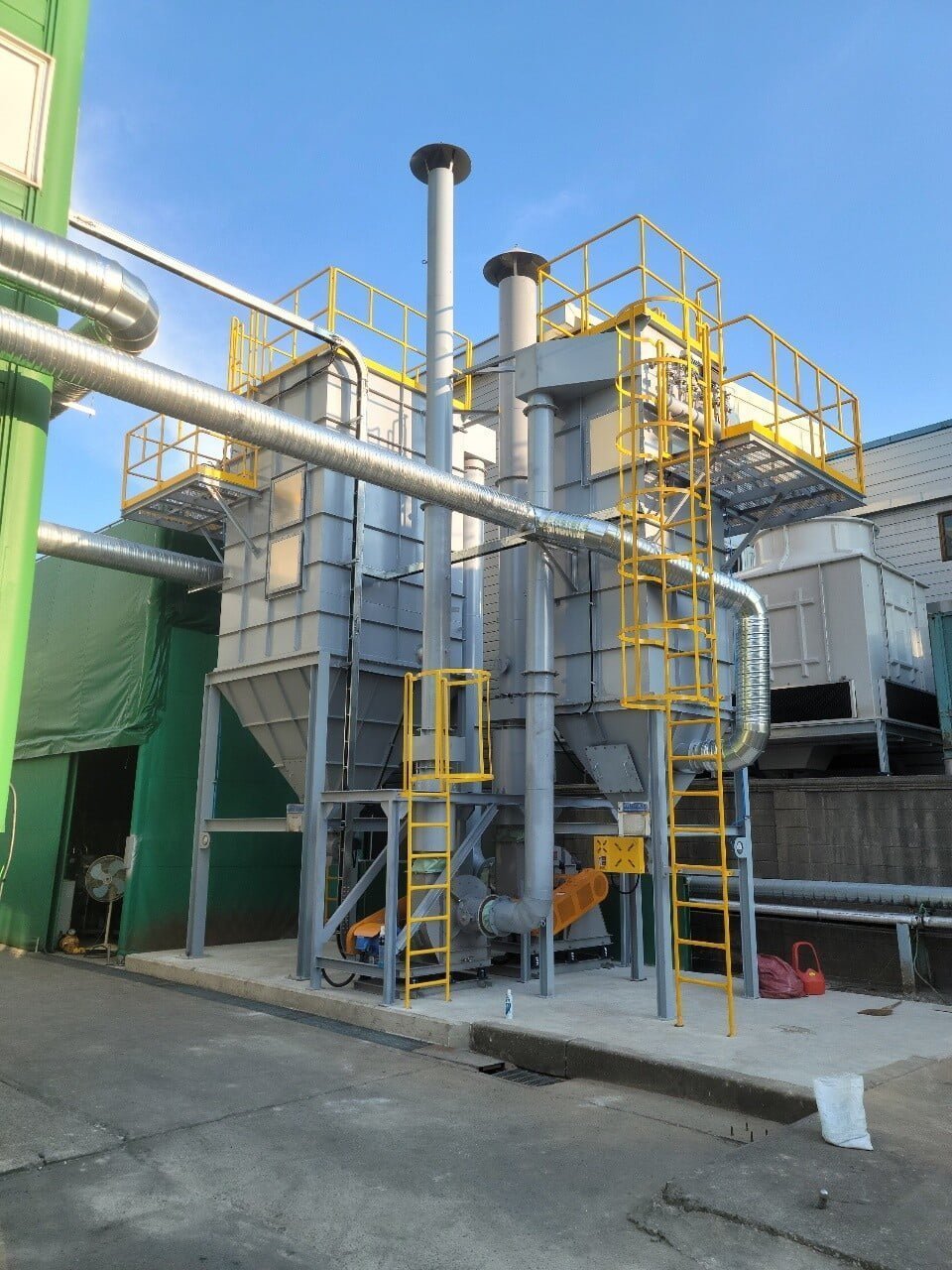

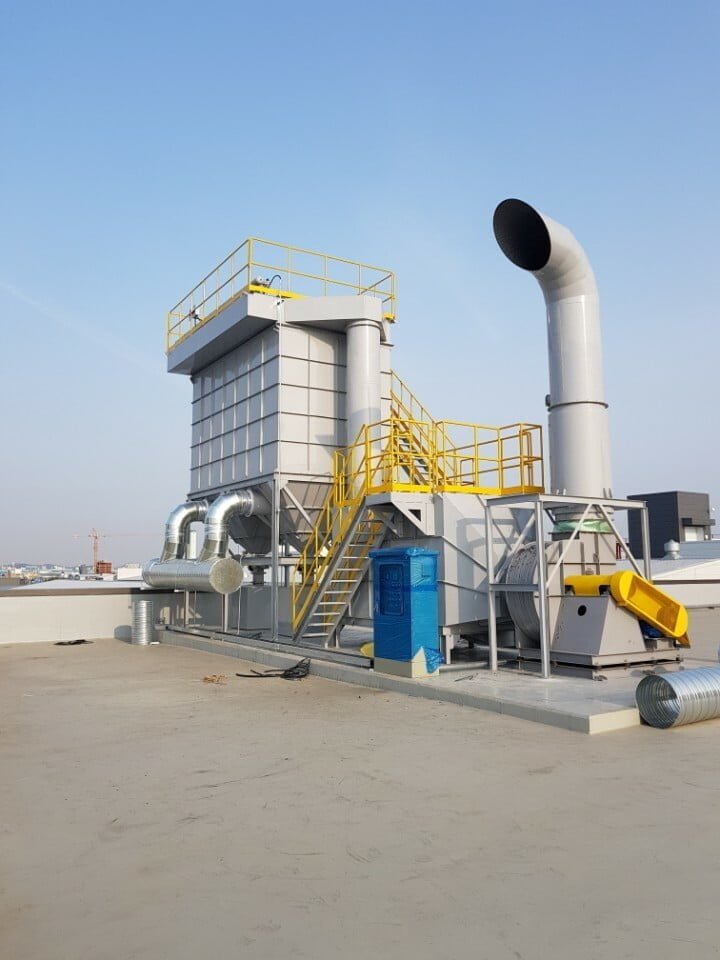

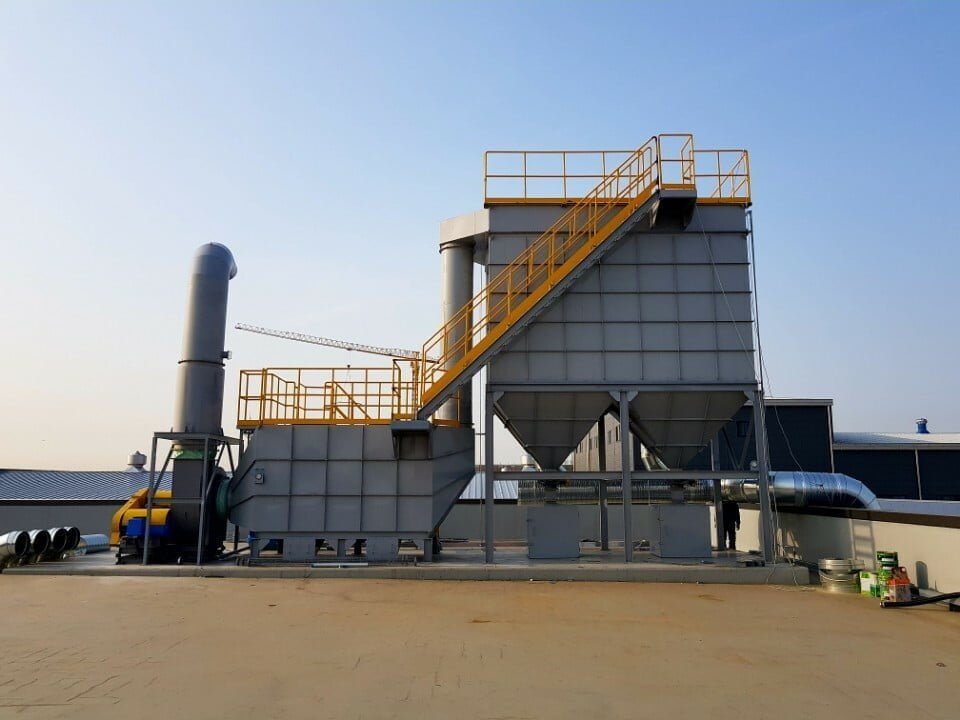

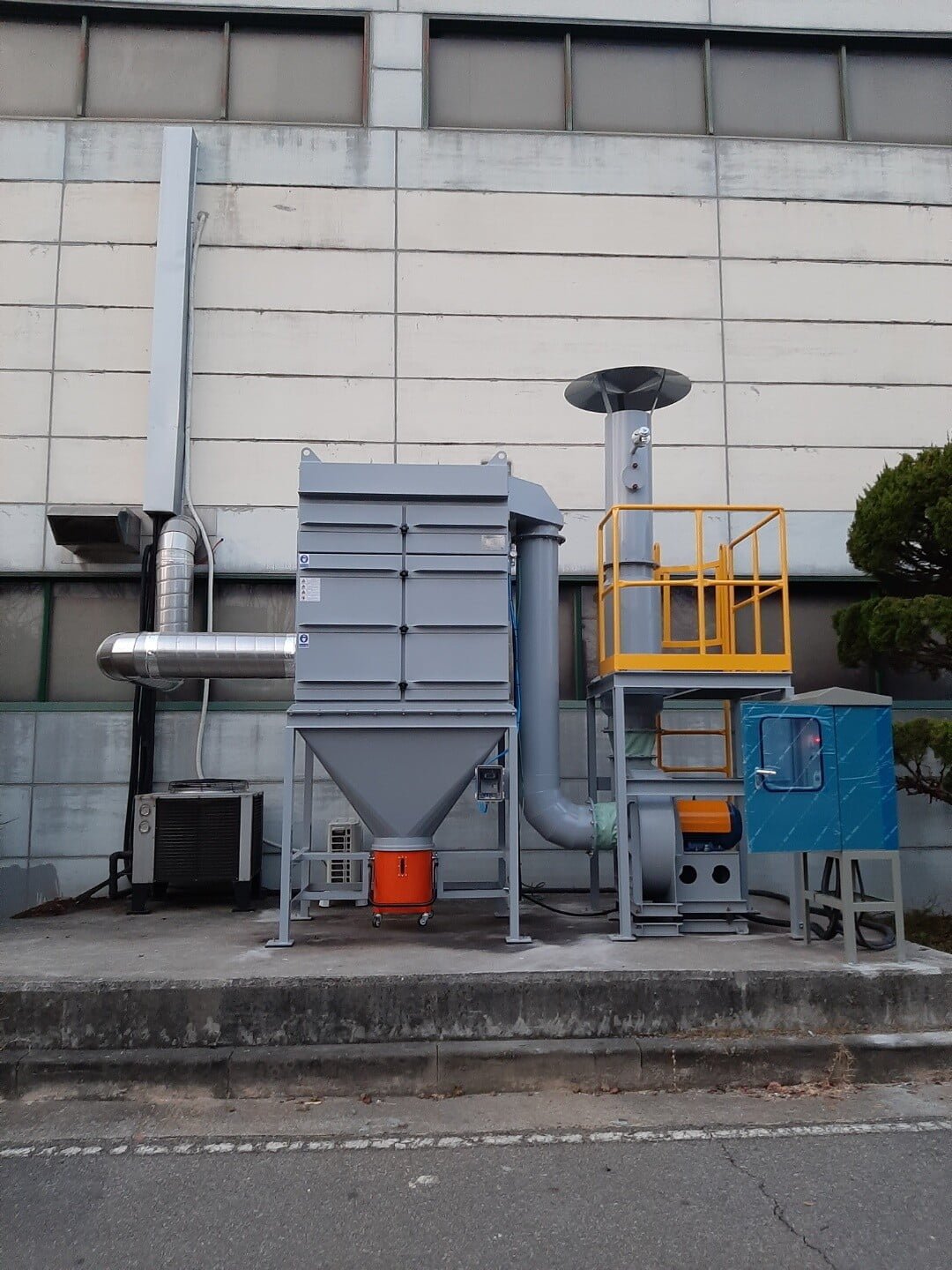

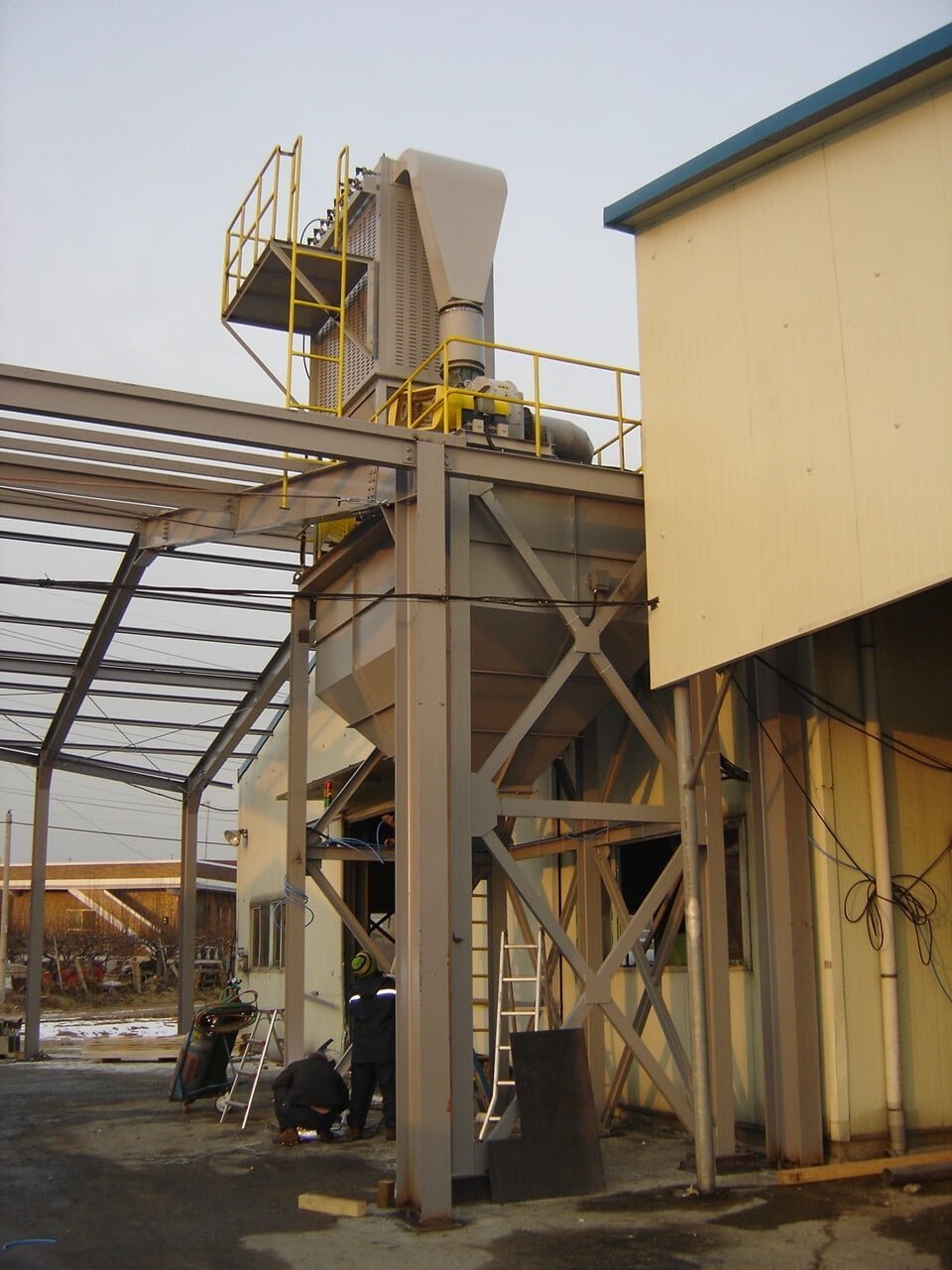

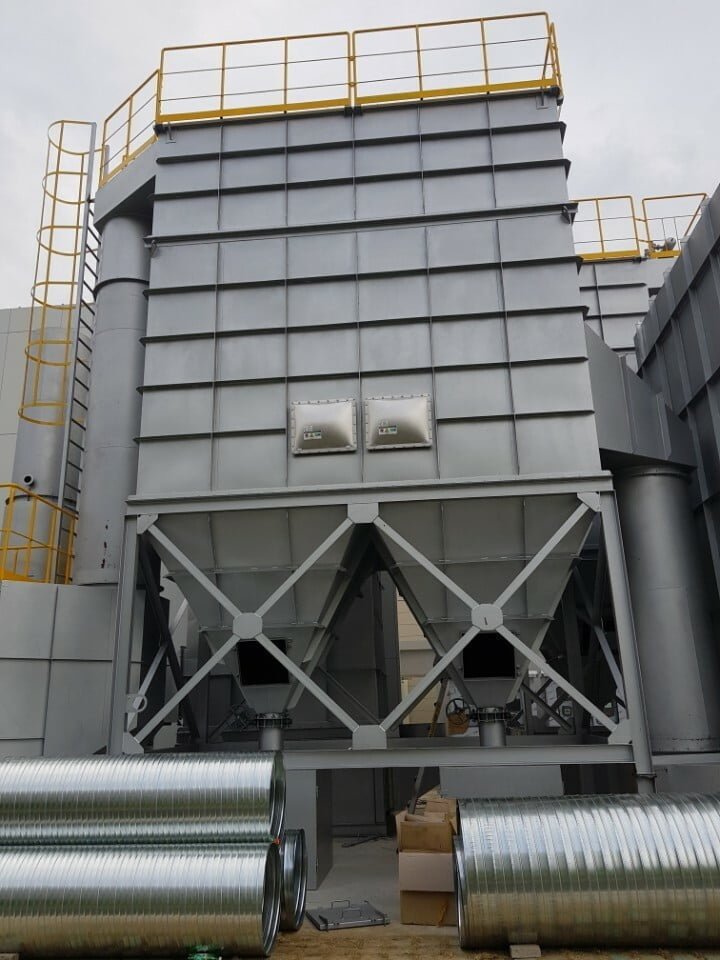

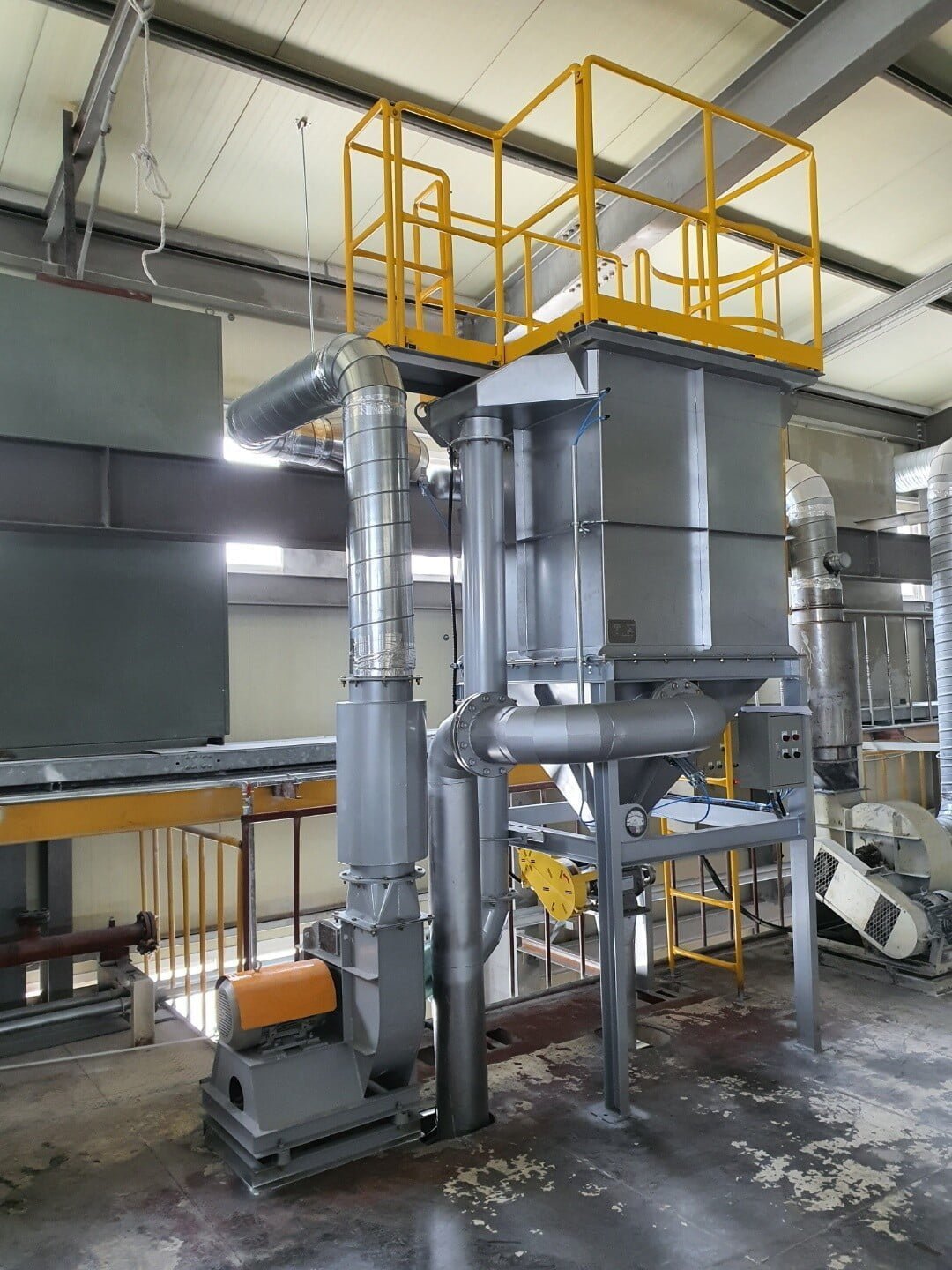

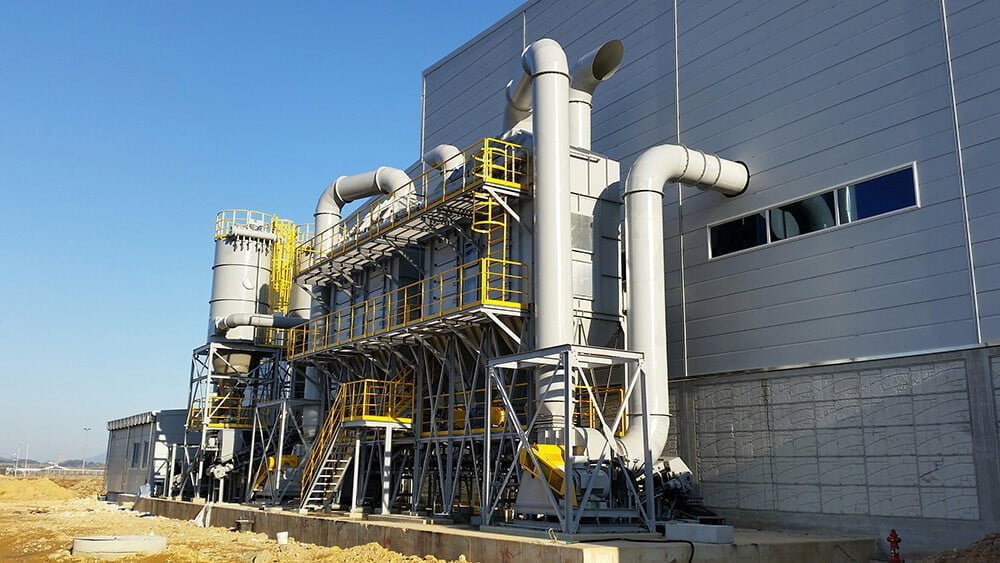

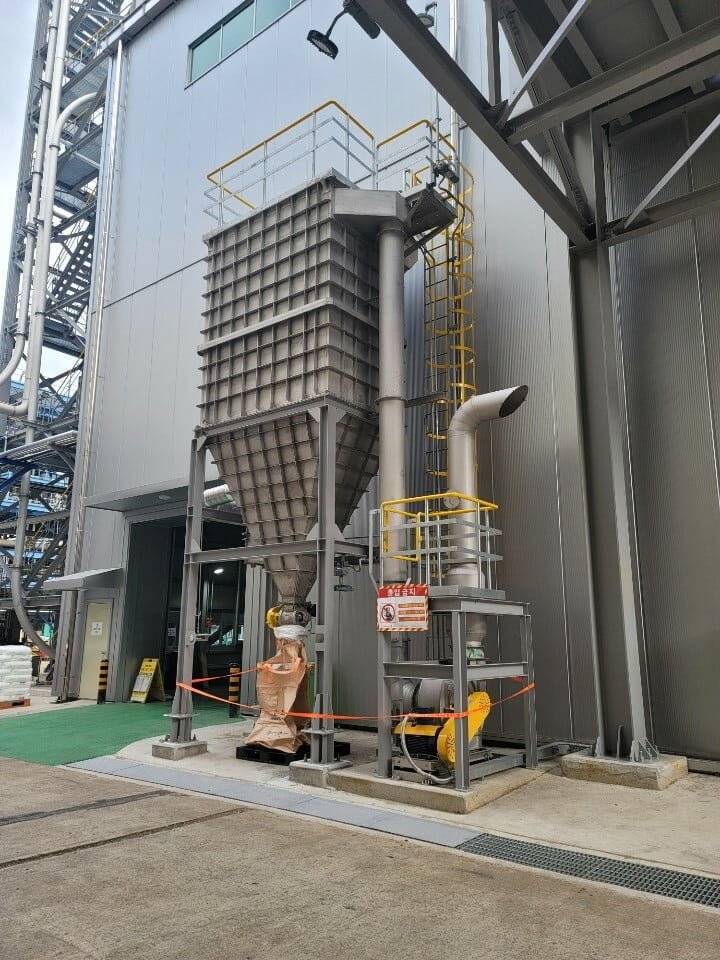

BAG FILTER DUST COLLECTOR SYSTEM

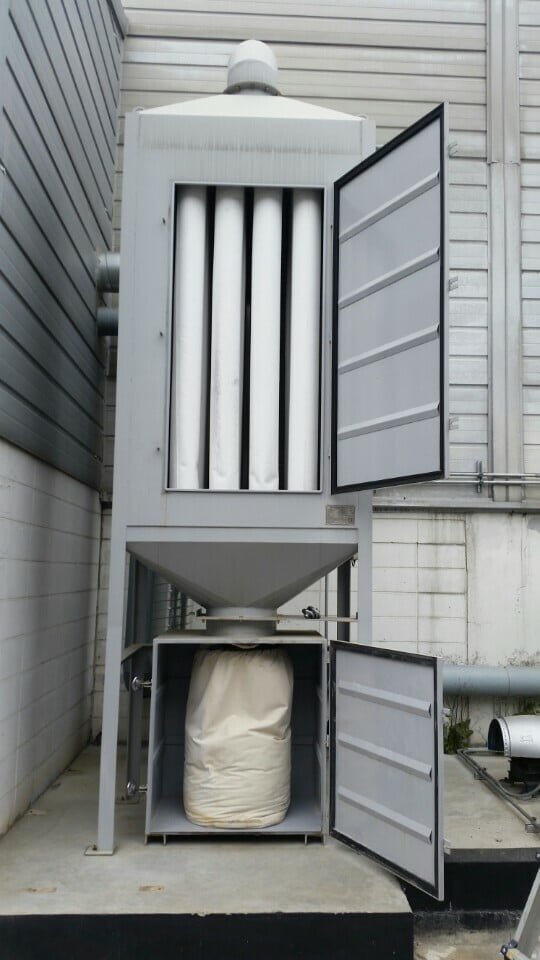

This product is effective in collecting particles as well as various forms of dust, using several cylindrical bag filters. With a low pressure loss pace, it is good in handling highly concentrated dust.
APPLICATION
Useful in work sites where a large amount of dry dust is generated.

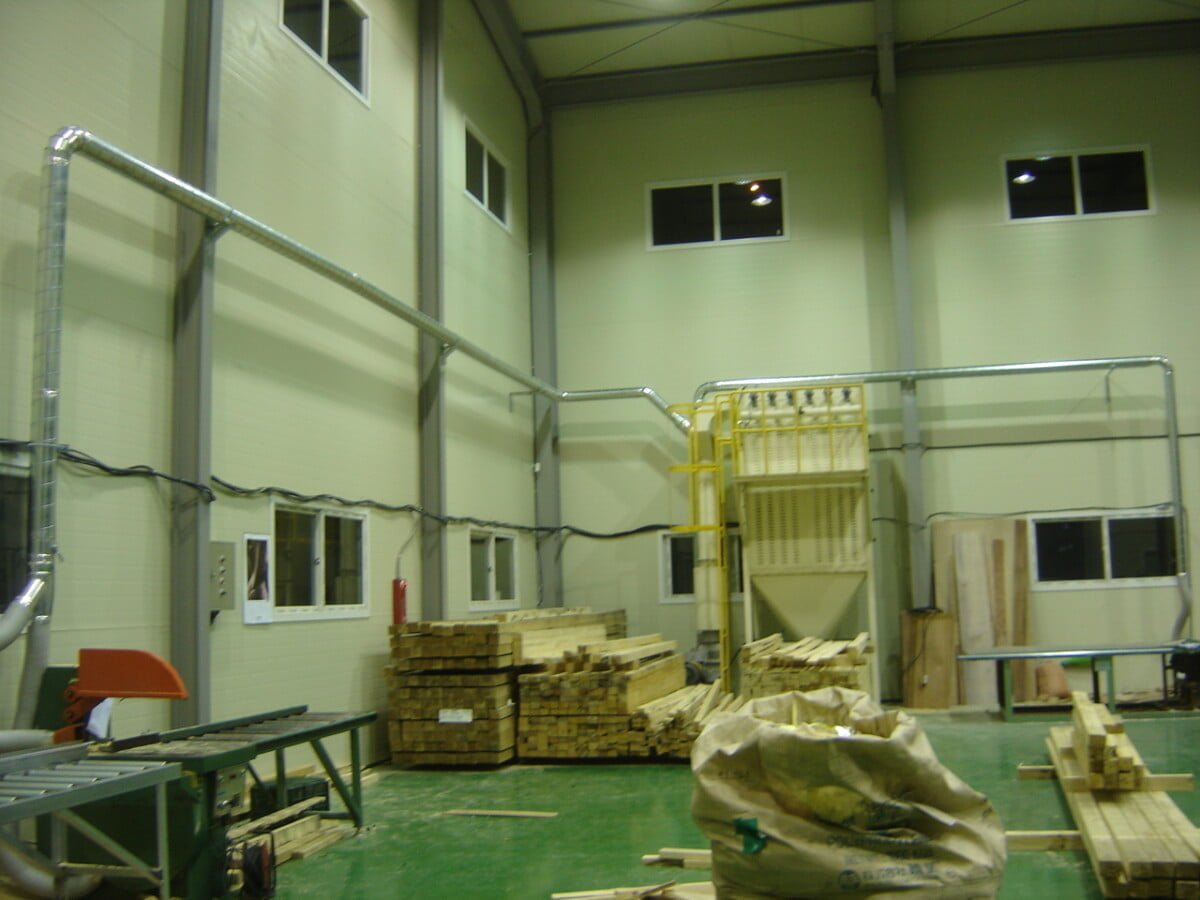

Flour milling factory, Mineral processing factory, Fertilizer blending factory, Woodworking, Food factory, Cement factory, Chemical factory, Fodder factory, Pharmaceutical factory, Drug factory, Plastics factory, Grain processing, etc.
※ This product can be customized in a variety of shapes to suit your use and installation site.
FEATURES
- Cleans a filter by spraying high-pressure air through an air pulse system and maximizes filtering efficiency.
- Ensures powerful suction, using a high-efficiency turbo fan.
- Stops the operation automatically when needed to check or change a filter and notifies a warning by buzzer.
- Easy maintenance with consumable parts at the front of the product.
- Keeps dust collection highly efficient through automatic filter cleaning (by air pulse system) after operation.
- Great filtering efficiency, using a filter with a large filtering area and high abrasion and tensile strength in cartridge form.

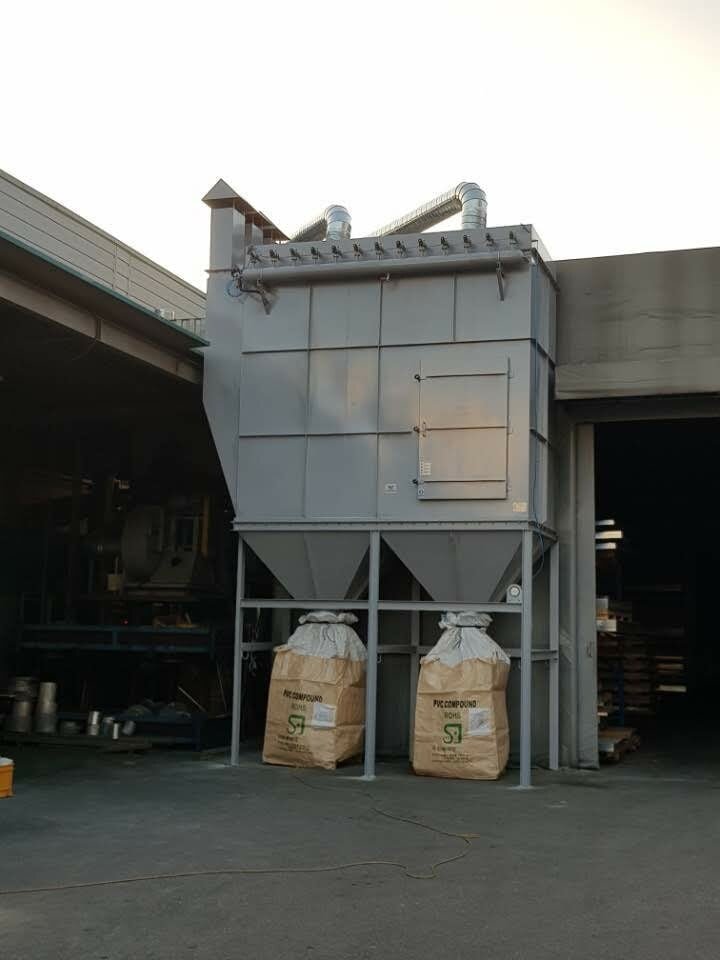

- Able to handle the dust collected in a dust box in a safe and convenient manner without secondary contamination.
- Able to manage an air pulse system and check a filter in addition to easy operation, using a main control panel.
- Easy filter maintenance, using a differential pressure gauge.
TYPES OF FILTER CLOTHS USED IN BAG HOUSE
A bag filter uses more than 10 different filter clothes. Since they have different properties by material, it is needed to select a filter cloth according to purposes in consideration of dust temperature/nature, treatment pressure, chemical resistance and moisture retention to maximize filtering efficiency.
POLYESTER
As the most common fiber, polyester has chemical resistance and high thermal resistance (150-170℃). It is required to be alert to hydrolysis and alkali gases in hot and humid environments.
POLYPROPYLENE
With great chemical resistance against acid and alkali, polypropylene has been widely used across chemical industry. This substance is applicable at certain temperature only (90-100℃). However, it is not good for aromatic hydrocarbon.
ACRYLIC
Acrylic is resistant to high temperature and acid but not hydrolysable.
HEAT-RESISTANT NYLON
내열성과 내산성이 우수하나, 고습도와 알칼리 가스에 약한 단점이 있습니다.
POLYIMIDE
It is highly resistant to heat and acid but vulnerable to high humidity and alkali gases.
PPS
Despite great chemical resistance, this substance is vulnerable to an oxidizing agent and bromine.
GLASS
Despite great heat resistance, it is required to set filtering velocity to 1m/min or less.
PTFE
It is effective in removing dust with the best heat and chemical resistances.
PTFE/GLASS
As a PTFE fiber with 15% glass, it is effective in removing cake with great heat and chemical resistances.
- This product is not suitable for wet or oily dust.
- To collect special dust (e.g., high-temperature dust, spark, explosive dust/gas, etc.), please contact us for a consultation before placing an order.
- An air compressor should be connected to use the filter cleaning system (air pulse system).
