Air Pollution Prevention Facilities

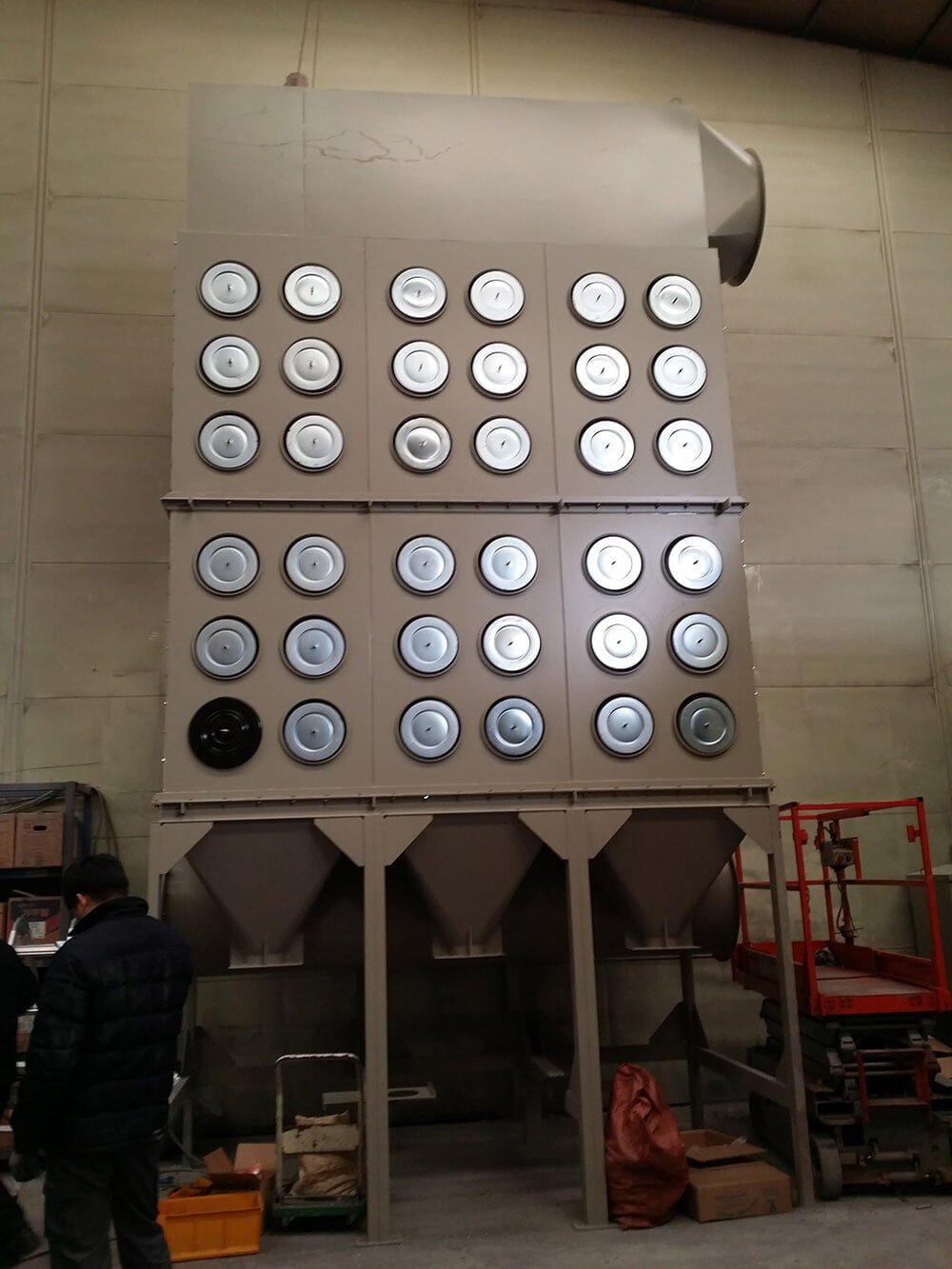

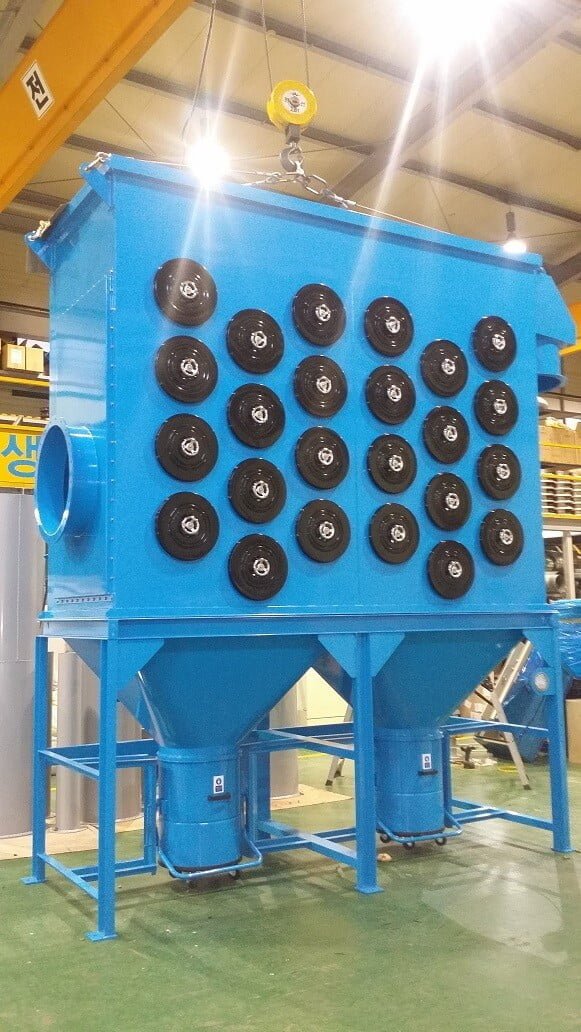

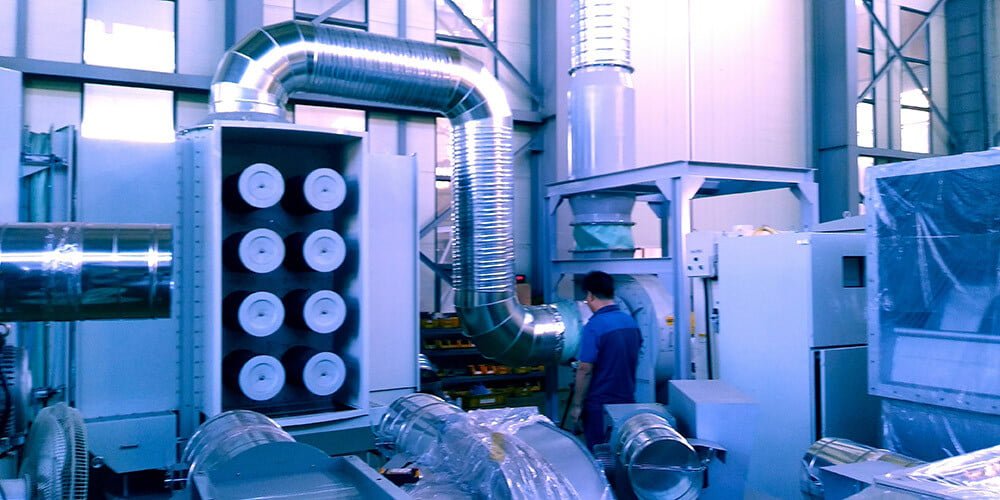

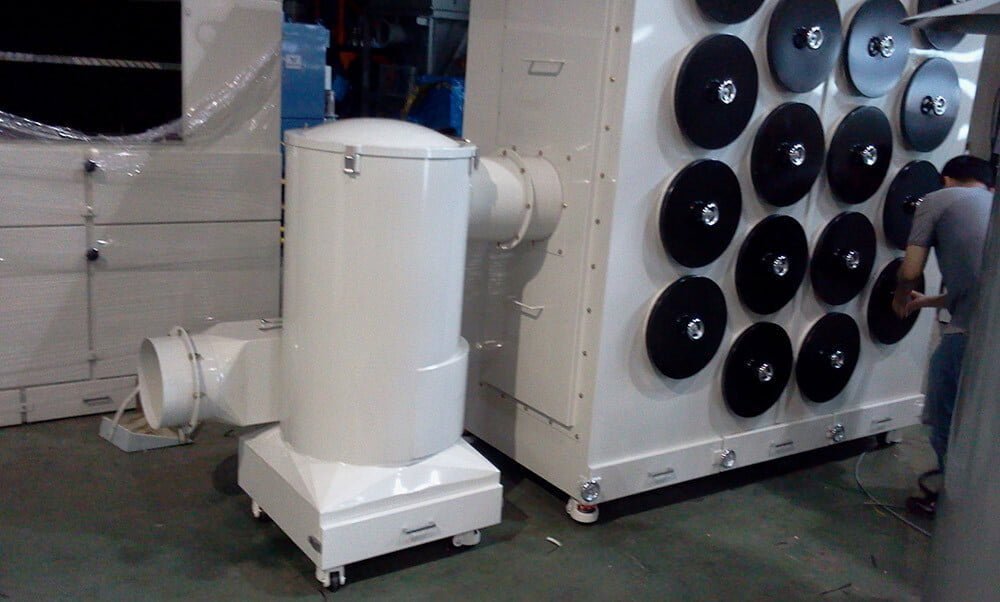

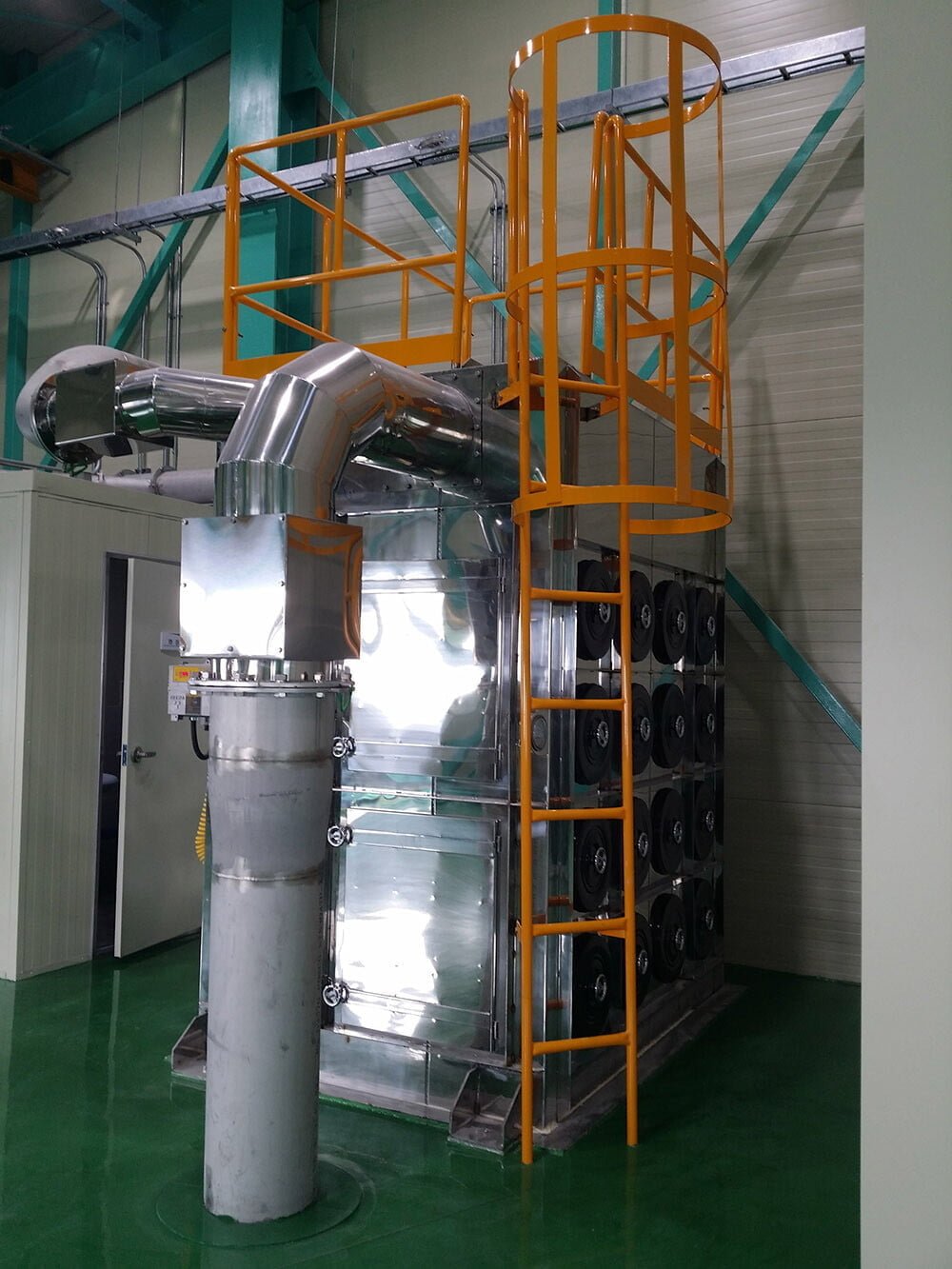

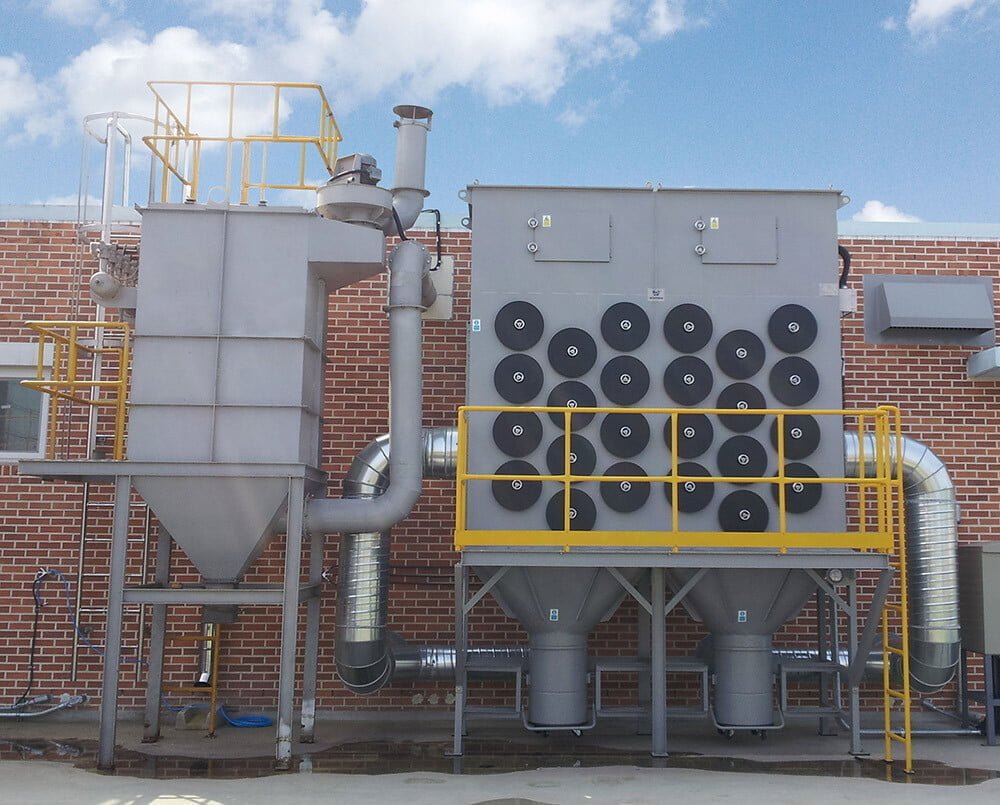

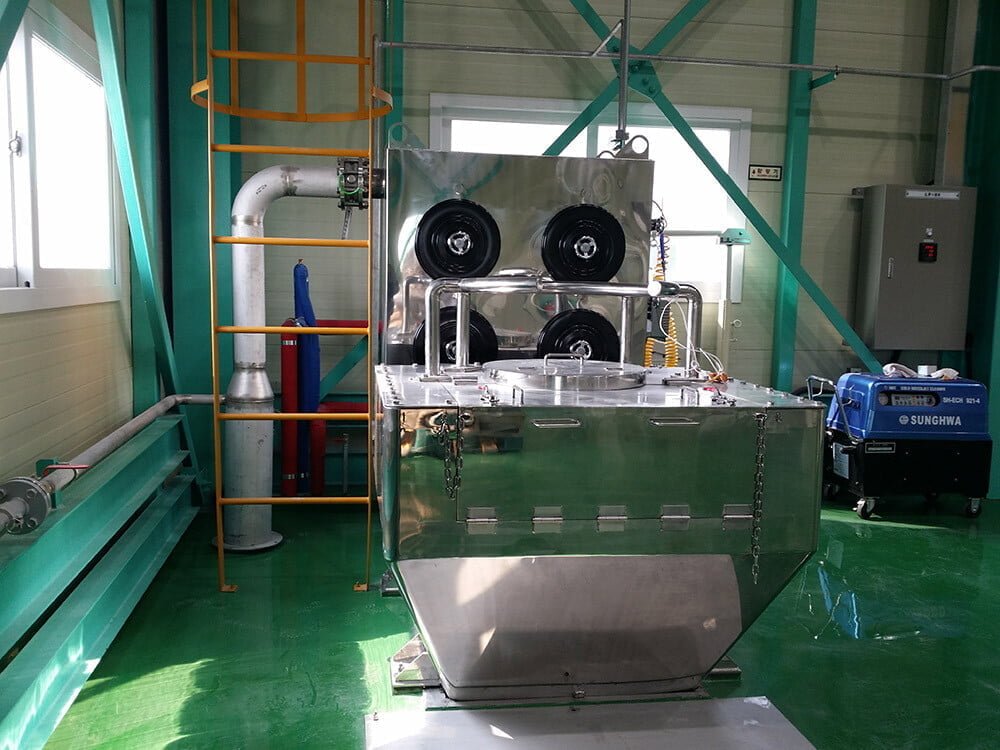

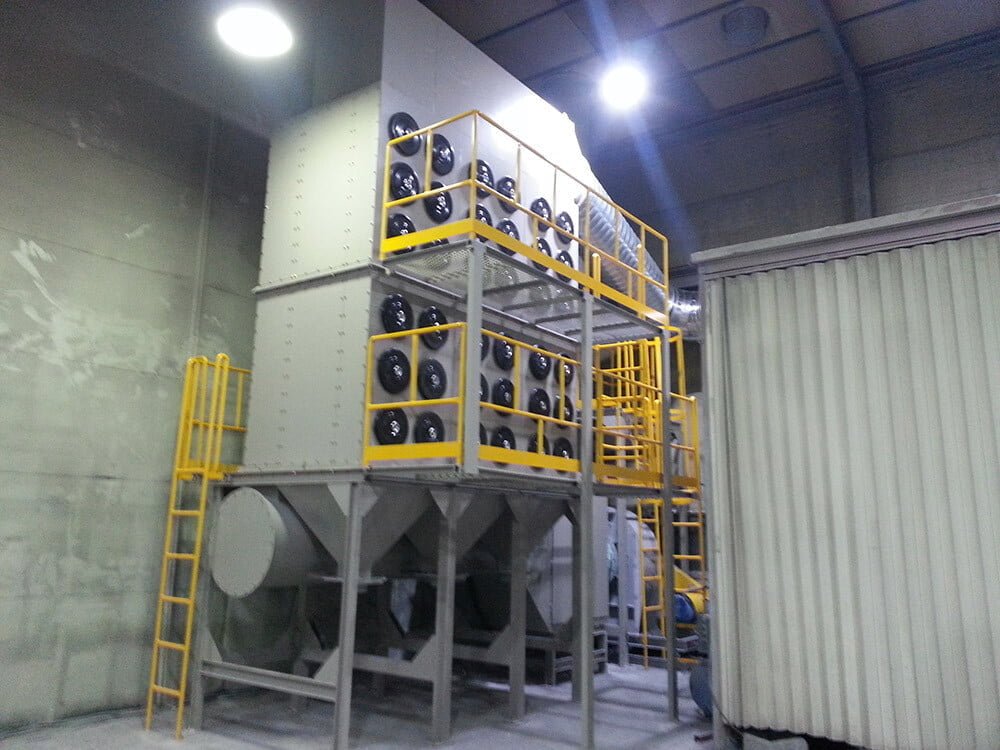

JET LINE FILTER DUST COLLECTOR SYSTEM
JLFS series
This product maximized a filtering area by installing a broad cylindrical cartridge filter vertically. It is very effective in collecting dust since the filter is automatically cleaned by an air pulse nozzle in each filter.
APPLICATIONS
Useful in work sites where a large amount of dry dust is present or generated.
Woodwork factory, Grain processing factory, Cement factory, Fertilizer blending factory, Fodder factory, Mineral processing factory, Chemical factory, Pharmaceutical factory, Plastics factory, Food factory, Flour milling factory, Laser processing, Welding work, Grinding work, Polishing work, Blasting work, Powder coating, etc.
※This product can be customized in a variety of shapes to suit your use and installation site.
FEATURES
- Ensures great dust collection and filtering efficiency because an air pulse nozzle in each filter sprays high-pressure air in 360-degree directions and cleans filter dust.
- Able to filter even ultra-fine particles, using a cylindrical filter with a broad filtering area (11.6㎡ per filter).
- Able to install minimum modules and easily expand later in module-type design, reducing costs.
- Maximizes dust collection and filtering efficiency because an air pulse nozzle in each filter sprays high-pressure air in 360-degree directions and cleans filter dust.
- Since air flows from the top to the bottom with no influence of a rising air current, it ensures great dust collection and filtering efficiency.
- Cleans a filter by spraying high-pressure air through an air pulse system and maximizes filtering efficiency.
- Ensures powerful suction, using a high-efficiency turbo fan.
- Stops the operation automatically when needed to check or change a filter and notifies a warning by buzzer.
- Easy maintenance with consumable parts at the front of the product.
- Keeps dust collection highly efficient through automatic filter cleaning (by air pulse system) after operation.
- Able to handle the dust collected in a dust box in a safe and convenient manner without secondary contamination.
- Able to manage an air pulse system and check a filter in addition to easy operation, using a main control panel.
- Easy filter maintenance, using a differential pressure gauge
CAUTION
- This product is not suitable for wet or oily dust.
- To collect special dust (e.g., high-temperature dust, spark, explosive dust/gas, etc.), please contact us for a consultation before placing an order.
- An air compressor should be connected to use the filter cleaning system (air pulse system).
