Air Pollution Prevention Facilities

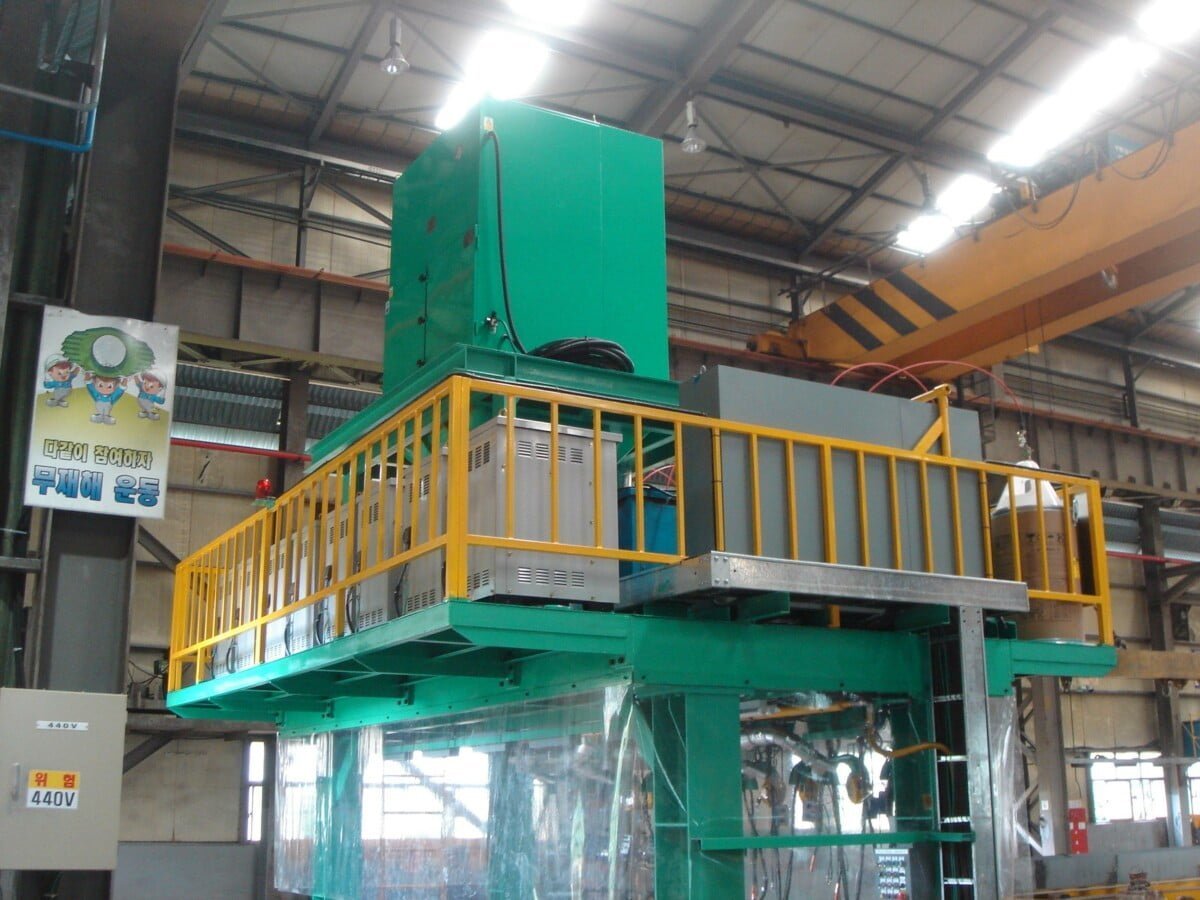

OVAL CARTRIDGE FILTER DUST COLLECTOR
MP series
This product uses an oval cartridge filter with a large filtering area. Since air flows from the top to the bottom with no influence of a rising air current, it ensures great dust collection efficiency.
APPLICATION
Useful in work sites where a large amount of dry dust is generated.
Woodwork factory, Grain processing factory, Cement factory, Fertilizer blending factory, Fodder factory, Mineral processing factory, Chemical factory, Pharmaceutical factory, Plastics factory, Food factory, Flour milling factory, etc.
※ This product can be customized in a variety of shapes to suit your use and installation site.
FEATURES
- Since air flows from the top to the bottom with no influence of a rising air current, it ensures great dust collection and filtering efficiency.
- Ensures great collection and filtering efficiency, using an oval filter with a large filtering area (9㎡ per filter).
- Reduces an installation space by 30% compared to a conventional dust collector with the same capacity in vertical filter system design.
- Ensures customized production depending on site situations and reduces an installation space by 30% compared to a conventional product with the same capacity in module package design.
- Prevents secondary contamination resulting from dust spreading because a filter can be easily replaced with a new one, using a plastic bag.
- Cleans a filter by spraying high-pressure air through an air pulse system and maximizes filtering efficiency.
- Ensures powerful suction, using a high-efficiency turbo fan.
- Stops the operation automatically when needed to check or change a filter and notifies a warning by buzzer.
- Easy maintenance with consumable parts at the front of the product.
- Keeps dust collection highly efficient through automatic filter cleaning (by air pulse system) after operation.
- Able to handle the dust collected in a dust box in a safe and convenient manner without secondary contamination.
- Able to manage an air pulse system and check a filter in addition to easy operation, using a main control panel.
- Easy filter maintenance, using a differential pressure gauge.
CAUTION
- This product is not suitable for wet or oily dust.
- To collect special dust (e.g., high-temperature dust, spark, explosive dust/gas, etc.), please contact us for a consultation before placing an order.
- An air compressor should be connected to use the filter cleaning system (air pulse system).
